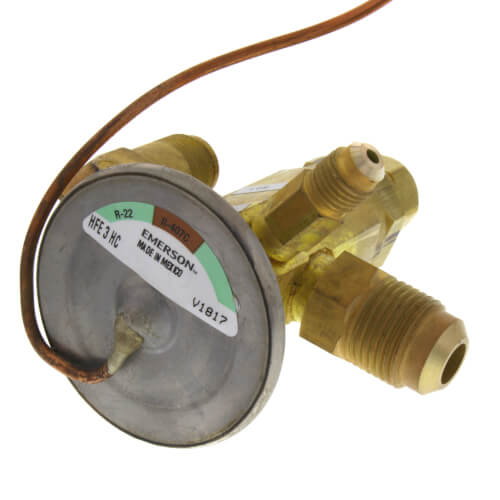

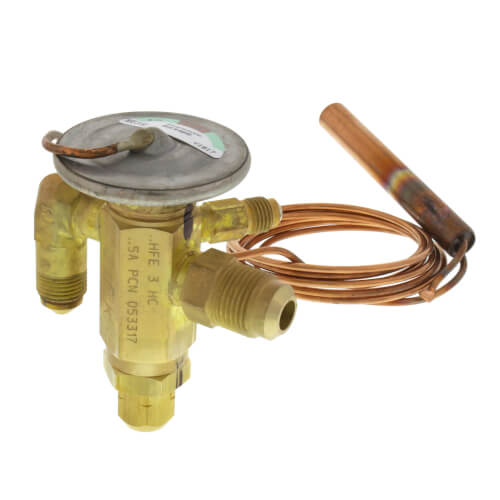

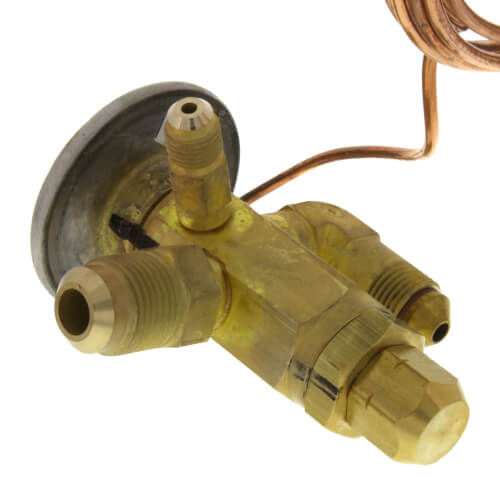

3/8" x 1/2" SAE HFE/HFES-Series Externally Equalized Valve (5 Ft. CAP)

Inlet: 3/8" SAE
Outlet: 1/2" SAE

HFE/HFES-Series Externally Equalized Valve (5 Ft. CAP)

The HF series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.

Features:

• Stainless steel replaceable power element eliminates corrosion and prevents valve failure
• Two body sizes provide capacities from 1/4 to 20 tons

Standard Body - HF & HFK:

• The HF is offered several ways:
  • Pre-packaged HFK service kits Include a mix of bodies and power elements with a complete set of cages to serve the most applications with a minimum of parts

  • Individual components Bodies, cages, & power elements may be ordered separately

  • Finished valves Assembled valves ready for immediate installation
• Bi-Flow capability up to 5-1/2 tons R-22 allows one valve to control the superheat in both cooling and heating modes

Extended Body - HF:

• Capacity range from 8 to 20 tons (R-22)
• Finished valve only

Options:

• ODF or SAE connections
• Straight-through or angle flow configurations
• Removable inlet strainer (ODF only)
• Internal or external equalizer

Specifications:

• Maximum working pressure: 450 psig
