Inlet: 3/8"
Outlet: 1/2"

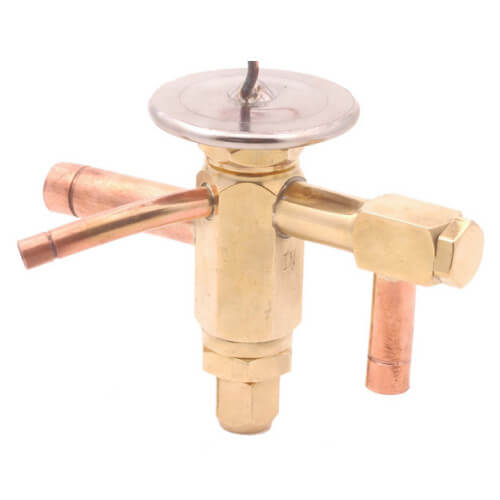

SAE HF-Series Externally Equalized Valve (1/2 Ton)

The HF series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.

  • Stainless steel replaceable power element eliminates corrosion and prevents valve failure
  • Two body sizes provide capacities from 1/4 to 20 tons
Standard Body - HF & HFK:
  • The HF is offered several ways:
    • Pre-packaged HFK service kits Include a mix of bodies and power elements with a complete set of cages to serve the most applications with a minimum of parts
    • Individual components Bodies, cages, & power elements may be ordered separately
    • Finished valves Assembled valves ready for immediate installation
  • Bi-Flow capability up to 5-1/2 tons R-22 allows one valve to control the superheat in both cooling and heating modes

Extended Body - HF:
  • Capacity range from 8 to 20 tons (R-22)
  • Finished valve only

  • ODF or SAE connections
  • Straight-through or angle flow configurations
  • Removable inlet strainer (ODF only)
  • Internal or external equalizer

  • Maximum working pressure: 450 psig
Hide Description
Product Type:


Inlet Size:


Outlet Size:


Connection Type:

SAE Flare

Max. Working Pressure:

450 psi

Refrigerant Type:




Externally Equalized
