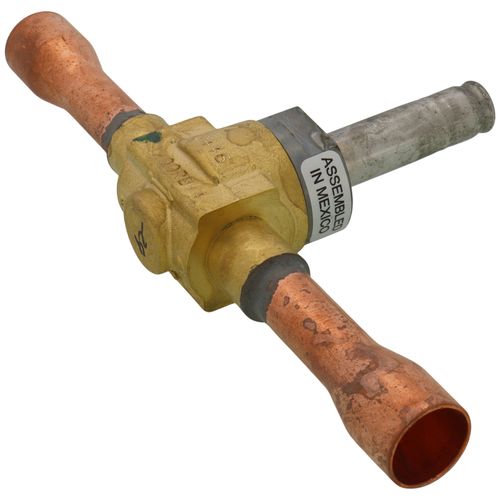

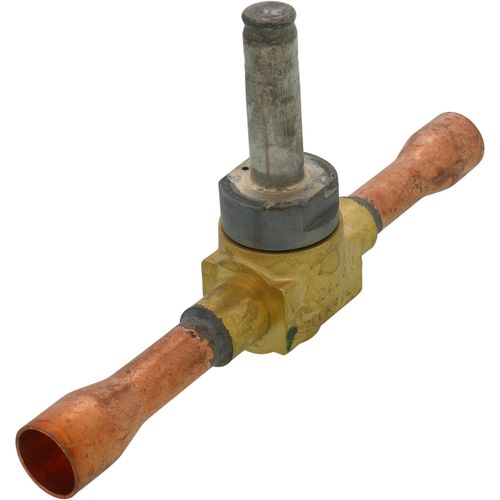

5/8" ODF 200RB4T5 2-Way Pilot-Operated Standard Valve
Hover image to zoom

5/8" ODF 200RB4T5 2-Way Pilot-Operated Standard Valve

SKU:
058950
Rating:
(0)
Q&A:
(0)
5/8" ODF 200RB4T5 2-Way Pilot-Operated Standard Valve
Hover image to zoom
$77.84 each
Out of Stock
Out of Stock
Get it Wed, Mar 20 - Wed, Mar 27
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Size icon
5/8" Connection
Connection Type icon
ODF Connection
Body Pattern icon
2-Way

Description

5/8" ODF 200RB4T5 2-Way Pilot-Operated Standard Valve

The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.

Features:
  • One coil fits all valve sizes
  • Extended ends for easy installation (standard)
  • Long-life molded coils
  • PTFE O-ring for superior external sealing

Options:
  • Available in 8 orifice sizes
  • Manual stem or mounting stud
  • Bi-Flow operation-conversion either factory assembled or with kit (except 200RB 7,9 & 12)

Specifications:
  • Maximum fluid temperature: 250°F
  • Maximum working pressure: 500 psig
  • Minimum operating pressure drop: 2 psi
  • MOPD: 300 psig
  • UL/CUL file number: MP604

Specs

Connection Size:

5/8"

Connection Type:

ODF

Features:

Pilot Operated

Body Pattern:

2-Way

Max. Working Pressure:

500 psi

Min Operating Pressure (PSI):

2

Max Fluid Temp:

250°F
