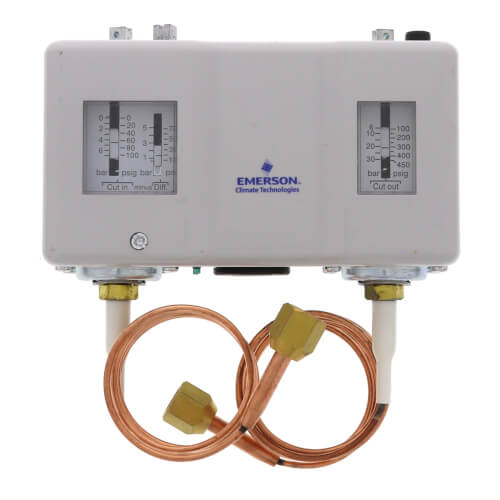

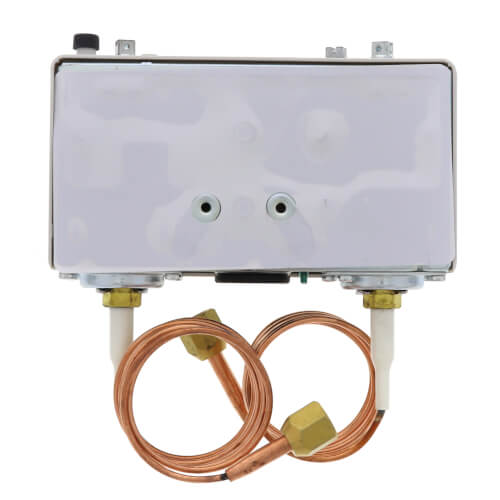

7/16" - 20 UNF PS2-Y7K Adjustable Dual Pressostat with Automatic Reset
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$252.86 each
In Stock
Get 7 Wed, Jul 8
MANUALS (1)
This item replaces: 097943
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
SPDT
UNF Connection
7/16"
Description
–
7/16" - 20 UNF PS2-Y7K Adjustable Dual Pressostat with Automatic Reset
PS2 Dual Pressure Controls are designed for use on high and low pressure applications in refrigeration, air conditioning, and heat pump systems. This control react to changes in either low or high side pressures, providing single-device control of the compressor or other electrical device.
Features:
Options:
Specifications:
PS2 Dual Pressure Controls are designed for use on high and low pressure applications in refrigeration, air conditioning, and heat pump systems. This control react to changes in either low or high side pressures, providing single-device control of the compressor or other electrical device.
Features:
- Adjustable pressures and differentials
- Narrow adjustable differential depending on model
- Range and differential pointer in units bar and psig
- Range and differential individually lockable by tab
- High rated SPDT contacts for all versions
- Captive terminal and cover screws
- Manual toggle for system checkout and override
- Factory installed wire bridge for reduced installation effort
- High side convertible from manual to auto reset.
Options:
- Different pressure connections
- Automatic and manual reset versions
- Factory set to customer specification
Specifications:
- SPDT switch rated for 12FLA and 72LRA at 240VAC and 16FLA and 96LRA at 120VAC
- Agency approvals include: UL/CUL file number E85974, CE per (LVD) low voltage directive
Specs
–
| Product Type: | Pressure Control |
|---|---|
| Pressure Range: | 87 to 464 psig |
| Size: | 7/16" |
| Connection Type: | UNF |
| Switch Action: | SPDT |
| Capillary Length: | 3 ft. |
