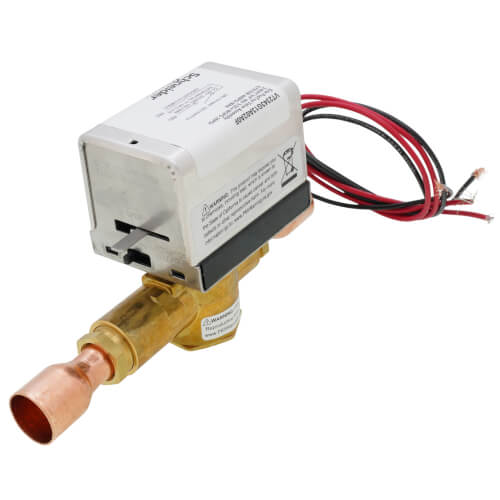

3/4" Inverted Flare 2-Way PopTop Zone Valve w/ End Switch (24V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$100.07 each
In Stock
Get 118 Mon, Jun 15
Order by today, receive Monday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Flare Connection
3.5 Cv
3/4"
24V
Normally Closed
Description
–
This item includes (2) 3/4" Sweat Fittings.
- Pushbutton release actuator
- Two-way zone valve The PopTop actuator mounts directly onto the body quickly, without the need for linkages and calibration Normally closed operation Two-position spring return, 18" leads and 100% shutoff Temperature range: 32°F to 200°F @ 169°F ambient temperature 400 PSI operating pressure limit.
3/4" Inverted Flare 2-Way PopTop Series Valve (3.5 CV) - Normally Closed, Gen. Temp. Zone Valve
Features:- Inverted Flare
- 2-Way Normally Closed
- 18" Leads
- Auxiliary Switch
Specs
–
| Size: | 3/4" |
|---|---|
| Body Pattern: | 2-Way |
| Connection Type: | Flare |
| Flow Capacity (Cv): | 3.5 |
| Actuator Type: | General Close-Off On/Off |
| Voltage: | 24V |
| Position: | Normally Closed |
| Wiring: | 18" Leads |
| End Switch: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Body Pattern
Connection Type
Flow Capacity (Cv)
Voltage
CURRENT ITEM
3/4"
2-Way
Flare
3.5
24V
You May Also Need
4 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.63 out of 19 reviews
89% would recommend this product
5 star
84%
4 star
5%
3 star
5%
2 star
0%
1 star
5%
Most Liked Positive Review
Excellent replacement of old Erie valve
I bought it to replace an old Erie valve model 0767C0036GA01 (50 years old or so)and it fits perfectly. Just in case, I bought the inverted flare connectors but I didn't need to use them, the new valve fitted exactly in place of the old one. I just drained the system, unscrewed the old valve, and screwed in the new one, no issues at all.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I will when my next valve fails but It may be bad, too.
I was disappointed. The valve I was replacing was leaking. I replaced it with the one you sent me. It did not leak but would not open for its motor was defective. I had to replace it with the motor from the old unit. I am afraid of this valve failing prematurely due to the used motor that was substituted.
Showing 1-10 of 19 reviews
I would buy from supply House again
fast service everything works the way it is suppose to
mike
wisconsin
2 years ago
Verified Buyer
Was this review helpful to you?
Bought before
I've bought this product before. I will be keeping this one for future needs since your company is the only place I have been able to find it. Thanks
Max
Osceola WI
2 years ago
Verified Buyer
Was this review helpful to you?
Works good, wires are a little short
It worked great and easy to install. My only issue was, the wires were 2" short so I had to add wire to make the connection.
handyman
Cable, WI
3 years ago
Verified Buyer
Was this review helpful to you?
Worked the first time!
Had to replace a zone valve and local suppliers were out of stock, back ordered for weeks. Got this from Supplyhouse in 2 days. Works as it should the first time, no issues and was NEW….not a remanufactured or refurbished part.
Dave
Ballston Lake, NY
4 years ago
Verified Buyer
Was this review helpful to you?
Bought as replacement
Was hoping to change out old style valve with newer poptop , didn't have time , new tenant in the apt. we put new style in a different apt in Feb 2023 , fit like a glove , no more too much heat issue
I V C properties
Clintonville,wi
4 years ago
Verified Buyer
Was this review helpful to you?
Yes
Great service
Fast turnaround
Tom
WI
4 years ago
Verified Buyer
Was this review helpful to you?
Great product
Excellent! Exactly what I need. Fast shipping too. Overall great experience.
DM
Brookfield, WI
4 years ago
Verified Buyer
Was this review helpful to you?
zone valves
i bought zone valves as backups now i have 3 new ones why pay a furnace man hundreds of dollars when you can do it yourself
tim
green bay, wi
4 years ago
Verified Buyer
Was this review helpful to you?
I will when my next valve fails but It may be bad, too.
I was disappointed. The valve I was replacing was leaking. I replaced it with the one you sent me. It did not leak but would not open for its motor was defective. I had to replace it with the motor from the old unit. I am afraid of this valve failing prematurely due to the used motor that was substituted.
JB
Elm Grove, WI
5 years ago
Verified Buyer
Was this review helpful to you?
Good product fast service
I highly recommend SupplyHouse.com. Easy to use good products (we bought made in USA which is important to the nation's survival).
Jim
Erie, PA
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Does the AG13A02A pop top actuator typically require simply replacing the actuator and not the entire valve?
Asked by Johnny P 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Johnny, thanks for writing in. Replacing the actuator is more commonly done than replacing the entire valve, so long as your valve is still in good shape.
Was this review helpful to you?
Q: I want to replace the motor for Erie VT2343g13A02A0F, two motors are shown in your parts list and I am not sure which one to order. Also the cover off my current unit which again is Erie 3/4" IFL 3.5Cv MOPD 20PSI, 24 v 50/60 HZ 2 WAY N.C. So my question is which replacement motor do I order? Gilbert
Asked by Gil 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffCheck the date code on your valve, if it was manufacturer prior to January 2003 then replace with SKU 30-118-A. If it was manufactured after, replace with SKU:30-158-A.
Was this review helpful to you?
