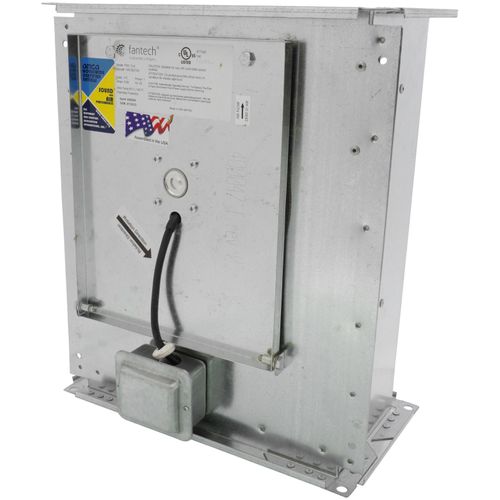

FRD Series Rectangle Inline Mixed Flow Centrifugal Fan, 12" x 6" Duct (310 CFM)
Hover image to zoom

FRD Series Rectangle Inline Mixed Flow Centrifugal Fan, 12" x 6" Duct (310 CFM)

Brand:
Fantech
SKU:
FRD12-6
Rating:
(0)
Q&A:
(0)
FRD Series Rectangle Inline Mixed Flow Centrifugal Fan, 12" x 6" Duct (310 CFM)
Hover image to zoom
$361.46 each
In Stock
In Stock
Get 6 Thu, Oct 5
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Air Flow Capacity (CFM) icon
300 CFM
Warranty icon
5 Year Warranty
Size icon
12" x 6"
Voltage icon
120v
RPM icon
2900 RPM

Description

This rectangular, centrifugal inline duct fan is ideal for areas with limited space and large ventilation needs such as multi-family or commercial buildings.
The housing design of the 12-6 FRD series fan allows for installation directly within 12” x 6” rectangular ductwork, without the need for large elbows or transitional sections. The 12-6 FRD series fan is simple to install and access for maintenance with no extra materials required.

Features
  • Hinged access door for easy service access
  • Quick access to exterior mount terminal box
  • Mount the fan at any angle/direction within the ductwork
  • Built-in thermal overload protection with automatic reset
  • Operable in airstream temperatures up to 140°F
  • CSA, UL, and AMCA Air & Sound certified
  • Five-year warranty
Specifications
  • Voltage (nominal): 120V
  • Frequency: 60Hz
  • Phases: 1~
  • Input power: 79W
  • Input current: 0.664A
  • Impeller speed: 2,900 rpm
  • Air flow: max 300 cfm
  • Temperature of transported air: max 140 °F
  • Enclosure class, motor: IP44
  • Insulation class: F

Specs

Size:

12" x 6"

Voltage:

120v

RPM:

2900

Air Flow Capacity (CFM):

300

Housing Material:

Galvanized Steel

Warranty:

5 Year

0" Ps:

310 CFM

0.2" Ps:

277 CFM

0.4" Ps:

249 CFM

0.6" Ps:

230 CFM

0.8" Ps:

190 CFM

1.0" Ps:

136 CFM

1.5" Ps:

109 CFM
