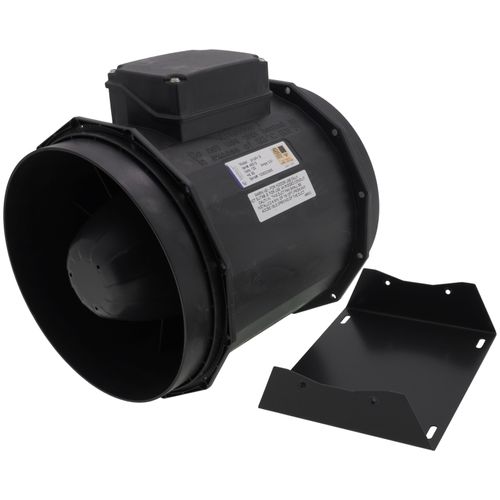

Inline Duct Fan with AC Motor, 93 W, 0.81 A, 3000 RPM (120V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$273.23 each
In Stock
Get 18 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
646 CFM
5 Year Warranty
10" Length
10" Width
12" Height
93 Watts
Description
–
Inline Duct Fan with AC Motor, 93 W, 0.81 A, 3000 RPM (120V)
Application:
The prioAir series is designed for installation in ducts. Extremely efficient, prioAir fans are perfect for a wide assortment of powerful, quiet air-moving applications.
Design:
Compact size, low noise, very high efficiency and air tight casing. Aerodynamically optimized impellers and guide vanes with integrated external rotor motors. Includes a mounting bracket. Special composite material is corrosion-proof and light weight.
Speed Control:
The prioAir EC fan motor's speed is controlled via a 0-10Vdc signal. The motor provides a +10V reference that can be used by a remotely-mounted potentiometer (such as MTP 10, see page 236). The motor can also be controlled by an externally-provided 0-10Vdc signal that can come from any device or a Building Management System (BMS). The fan's motor also provides operational speed (tachometer pulse) output that can be used to verify fan operation. These control features allow the prioAir EC to be integrated into and play an active role in smart HVAC systems in buildings.
The prioAir AC fan models may be controlled via a solid state speed controller.
Motor Protection:
Thermal overload protection with automatic reset.
Models:
There are two available duct sizes with AC and EC motors. AC motor models may be controlled via a solid state speed controller. EC motor models provide the highest efficiency, may be controlled via a 0-10Vdc speed control signal, and include a pre-wired speed control potentiometer.
Features:
Application:
The prioAir series is designed for installation in ducts. Extremely efficient, prioAir fans are perfect for a wide assortment of powerful, quiet air-moving applications.
Design:
Compact size, low noise, very high efficiency and air tight casing. Aerodynamically optimized impellers and guide vanes with integrated external rotor motors. Includes a mounting bracket. Special composite material is corrosion-proof and light weight.
Speed Control:
The prioAir EC fan motor's speed is controlled via a 0-10Vdc signal. The motor provides a +10V reference that can be used by a remotely-mounted potentiometer (such as MTP 10, see page 236). The motor can also be controlled by an externally-provided 0-10Vdc signal that can come from any device or a Building Management System (BMS). The fan's motor also provides operational speed (tachometer pulse) output that can be used to verify fan operation. These control features allow the prioAir EC to be integrated into and play an active role in smart HVAC systems in buildings.
The prioAir AC fan models may be controlled via a solid state speed controller.
Motor Protection:
Thermal overload protection with automatic reset.
Models:
There are two available duct sizes with AC and EC motors. AC motor models may be controlled via a solid state speed controller. EC motor models provide the highest efficiency, may be controlled via a 0-10Vdc speed control signal, and include a pre-wired speed control potentiometer.
Features:
- Airflow up to 810 cfm
- Zero leakage
- Extremely energy efficient operation
- Can be installed in any position
- BMS compatible (EC models)
Specs
–
| Product Type: | Fan |
|---|---|
| Weight (lbs): | 8 lbs |
| Length (Inches): | 10" |
| Width (Inches): | 10" |
| Height (Inches): | 12" |
| Warranty: | 5 Year |
| Wattage: | 93 |
| Amperage: | 0.81 |
| Voltage: | 120v |
| RPM: | 3000 |
| Air Flow Capacity (CFM): | 646 |
| 0" Ps: | 646 CFM |
| 0.2" Ps: | 602 CFM |
| 0.4" Ps: | 553 CFM |
| 0.6" Ps: | 487 CFM |
| 0.8" Ps: | 300 CFM |
| 1.0" Ps: | 160 CFM |
