$179.97 each
In Stock
Order by today, receive Thursday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V, 208V
1100 RPM
Reversible
1/6 HP
Bracket
0.99 Amps
Description
–

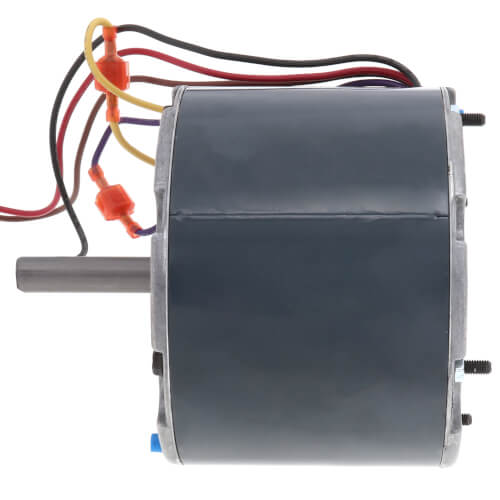

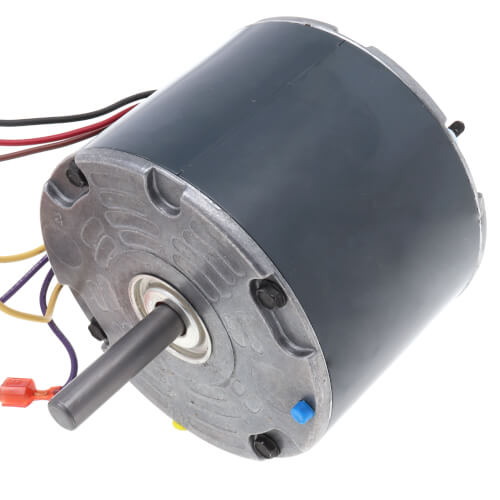

1-Speed 1100 RPM 1/6 HP Motor (208/230V)
Replaces: Heil Quaker - HQ 1052662EM; 48HXCLW-1562
Replaces: Heil Quaker - HQ 1052662EM; 48HXCLW-1562
Specs
–
| OEM: | ICP/Heil Quaker |
|---|---|
| Type: | Permanent Split Capacitor |
| Horse Power: | 1/6 |
| Voltage: | 230V 208V |
| RPM: | 1100 |
| Speeds: | 1 |
| Amperage: | 0.99 |
| Enclosure Type: | Open Air Over |
| Mount: | Bracket |
| Rotation: | Reversible |
| Phase: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Bearings: | Ball |
| Frame Size: | 42 |
| Duty: | Continuous |
| Frequency: | 60 Hz |
| Insulation Class: | B |
| Poles: | 6 |
| Overload Protection: | Automatic |
| Approvals: | UL |
