$493.88 each
In Stock
Get 1 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/230V
1550 RPM
CCWSE
1/12 HP
Extended Studs
4.4" Diameter
Description
–

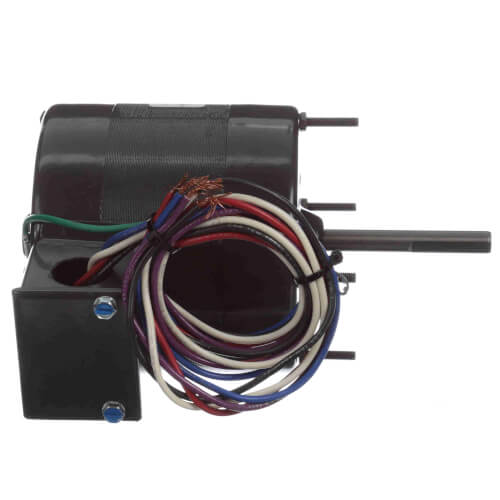

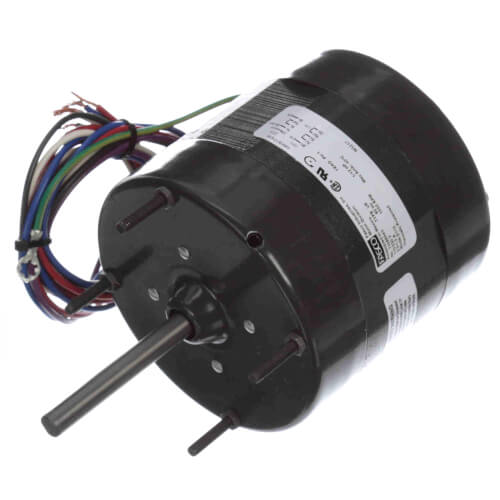

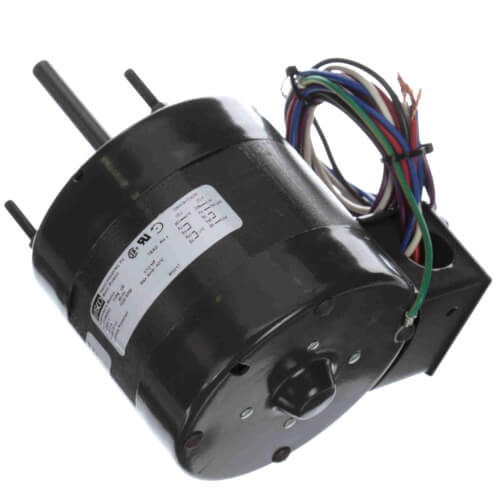

1-Speed 1550 RPM 1/12 HP Motor (115/230V)
***Image may not be an actual representation of the item.
***Image may not be an actual representation of the item.
Specs
–
| Type: | Shaded Pole |
|---|---|
| Horse Power: | 1/12 |
| Voltage: | 115/230V |
| RPM: | 1550 |
| Speeds: | 1 |
| Mount: | Extended Studs |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Rotation: | CCWSE |
| Diameter (Inches): | 4.4" |
| Phase: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Bearings: | Sleeve |
| Frame Size: | 4.4 |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | A |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: what is the shaft diameter
Asked by happy 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe shaft diameter of the D113 motor is 3/8".
