$224.14 each
In Stock
Get 2 Wed, Jun 10
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1540/1390 RPM
Reversible
1/250, 1/100 HP
Belly Band
0.6 Amps
Description
–

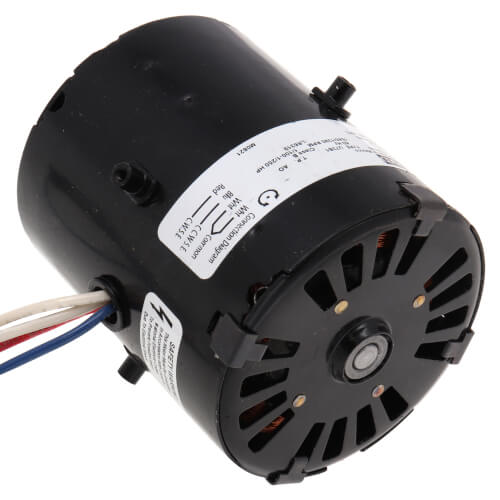

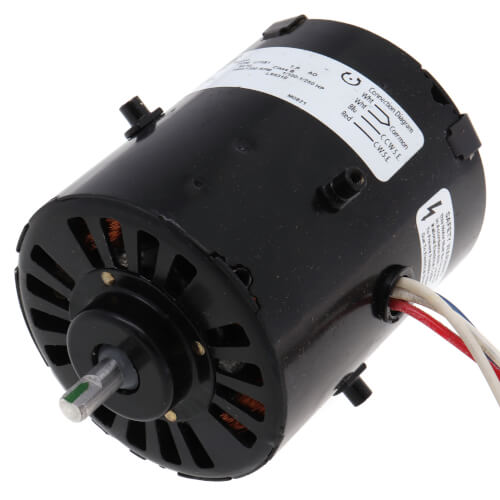

1-Speed 1540/1390 RPM 1/100-1/250 HP Motor (115V)
Specs
–
| Type: | Shaded Pole |
|---|---|
| Horse Power: | 1/250 1/100 |
| Voltage: | 115V |
| RPM: | 1540/1390 |
| Speeds: | 1 |
| Amperage: | 0.6 |
| Rotation: | Reversible |
| Enclosure Type: | Open Air Over |
| Mount: | Belly Band |
| Diameter (Inches): | 3.3" |
| Phase: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Bearings: | Sleeve |
| Frame Size: | 3.3 |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | B |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Exactly what I needed.
My FASCO brand bathroom ceiling light/ventilator/heater fan motor failed. This unit is more than 25 years old and is no longer manufactured. A new unit would be expensive and require some carpentry work. The local electrical supply house didn't have a motor for it in stock and would have to order it. The price they quoted me made me search on line. I found the motor at SupplyHouse.com for a much more resonable price. I checked the specs and the image carefully before I ordered. I received my new motor in just a few days. I am an amatuer and installed it in about 30 minutes. It works great.
Charlie
South Carolina
12 years ago
Verified Buyer
