$153.73 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/230V
1550 RPM
CWSE
1/25 HP
Extended Studs
3.3" Diameter
Description
–

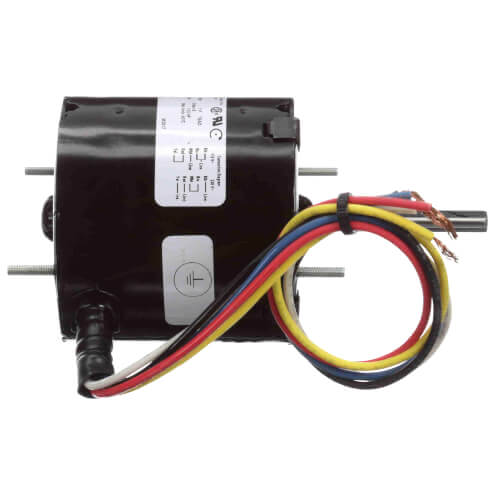

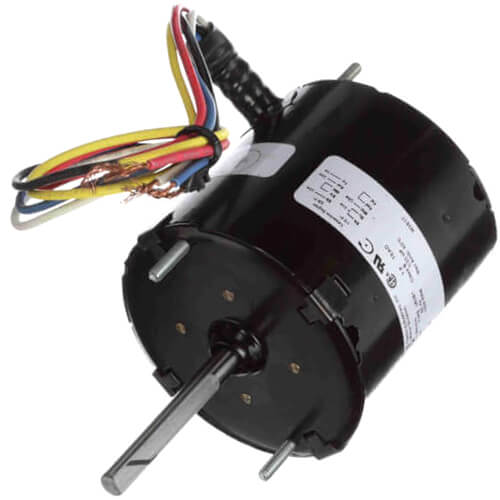

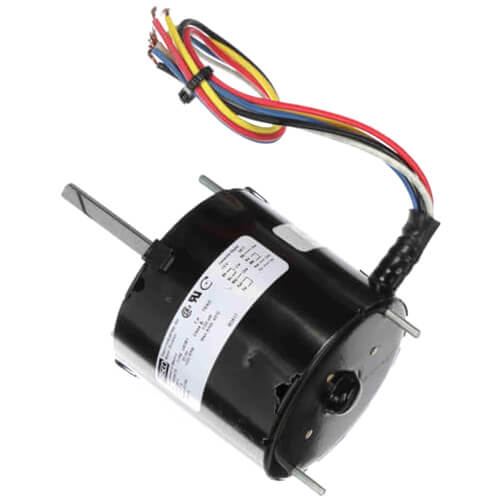

1-Speed 1550 RPM 1/25 HP Motor (115/230V)
Replaces: Singer - JA2P091N, JA2P0901N
***Image may not be an actual representation of the item.
Replaces: Singer - JA2P091N, JA2P0901N
***Image may not be an actual representation of the item.
Specs
–
| Type: | Shaded Pole |
|---|---|
| Horse Power: | 1/25 |
| Voltage: | 115/230V |
| RPM: | 1550 |
| Speeds: | 1 |
| Rotation: | CWSE |
| Enclosure Type: | Totally Enclosed |
| Mount: | Extended Studs |
| Diameter (Inches): | 3.3" |
| OEM: | Singer |
| Phase: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Frame Size: | 3.3 |
| Bearings: | Sleeve |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | B |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: Do they make this motor in counter-clockwise rotation? How do you check rotation from facing shaft or from behind motor??
Asked by None 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. The direction of a motor's rotation is determined by viewing the motor from the drive end (side with the shaft extension). Please see Fasco's selection guide for the exact specs on each motor: https://s3.amazonaws.com/s3.supplyhouse.com/product_files/D1164%20-%20Selection.pdf
Was this review helpful to you?
Q: THE motors I NEED TO REPLACE ARE 2 SPEED. dO YOU HAVE ANY LIKE THIS THAT ARE 2 SPEED? CAN A SINGLE SPEED MOTOR BE USED INSTEAD? THANKS D HAYES
Asked by Dennis 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffwe cant source parts like that, most of our parts are OEM and unit specific.
