$222.55 each
In Stock
Order by 2PM, receive Monday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1550 RPM
CWSE
1/15 HP
Resilient Rings
3.5 Amps
Description
–

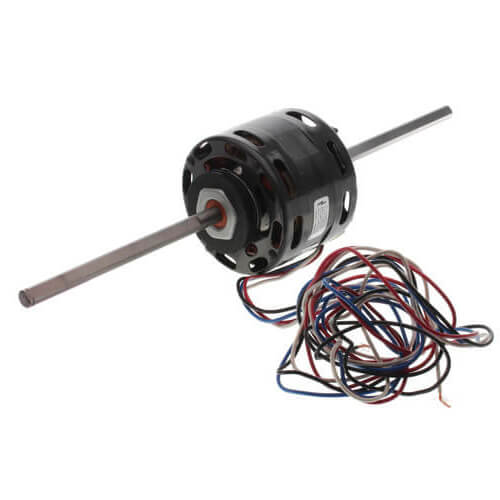

Product Description
- Thermally protected
- Double Shaft end rotation
- CSA or ULc certified, UL recognized
- Extended hubs with rubber rings for base mount
- Open Ventilated Air Over shaded pole refrigeration fan motor with sleeve bearing.
- Automatic thermally protected.
- UL recognized. CSA or ULc certified.
- Mounting bracket designed to match the original motor (four 8-36 drilled and tapped holes).
- Mounting hardware included. Has 22" leads with 1/16" thick insulation. Three studs opposite shaft end are 8-32 on a standard 2.84" bolt circle, 120 degree apart.
- 115V Voltage.
- 3-Speed
- 1550 RPM
- 3.5-2.4-1.8 amps
- 3-3/8" Motor length.
Specs
–
| Type: | Shaded Pole |
|---|---|
| Amperage: | 3.5 |
| Voltage: | 115V |
| Speeds: | 3 |
| Hertz: | 60 |
| RPM: | 1550 |
| Horse Power: | 1/15 |
| Rotation: | CWSE |
| Enclosure Type: | Open Air Over |
| Mount: | Resilient Rings |
| Phase: | 1 |
| Frame Size: | 4.4 |
| Max Ambient Temp (°F): | 104°F |
| Bearings: | Sleeve |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | A |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
