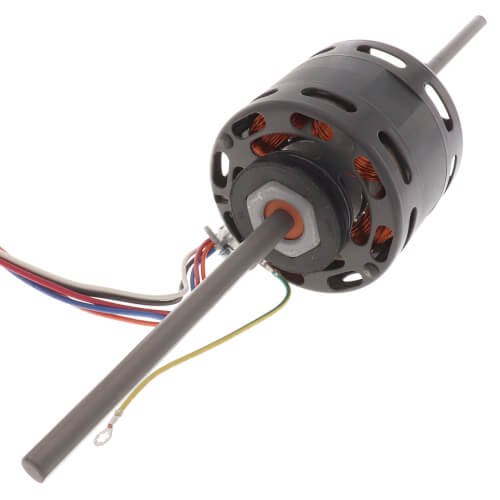

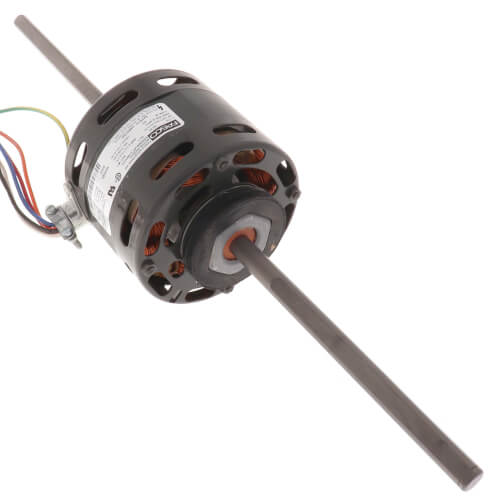

Main product image of 4-Speed 1550 RPM 1/8 - 1/10 - 1/12 - 1/15 HP DS Motor (115V)
Magnifying glass
Hover image to zoom

4-Speed 1550 RPM 1/8 - 1/10 - 1/12 - 1/15 HP DS Motor (115V)

Brand:
Fasco
SKU:
D337
Rating:
(0)
Q&A:
(0)
4-Speed 1550 RPM 1/8 - 1/10 - 1/12 - 1/15 HP DS Motor (115V)
Magnifying glass
Hover image to zoom
$173.85 each
In Stock
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: RPM
1550 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/8, 1/12, 1/10, 1/15 HP
Product Highlight: Mount
Resilient Rings
Product Highlight: Amperage
4.1 Amps

Description

–
Product Description
  • Thermally protected
  • Double Shaft end rotation
  • CSA or ULc certified, UL recognized
  • Extended hubs with rubber rings for base mount
  • Open Ventilated Air Over shaded pole refrigeration fan motor with sleeve bearing.
  • Automatic thermally protected.
  • UL recognized. CSA or ULc certified.
  • Mounting bracket designed to match the original motor (four 8-36 drilled and tapped holes).
  • Mounting hardware included. Has 22" leads with 1/16" thick insulation. Three studs opposite shaft end are 8-32 on a standard 2.84" bolt circle, 120 degree apart.
  • 115V Voltage.
  • 4-Speed
  • 1550 RPM
  • 4.1-2.7-2.3-1.9 amps
  • 3-5/8" Motor length.

Specs

–
Type:

Shaded Pole

Amperage:

4.1

Voltage:

115V

Speeds:

4

Hertz:

60

RPM:

1550

Horse Power:

1/8

1/12

1/10

1/15

Rotation:

Reversible

Enclosure Type:

Open Air Over

Mount:

Resilient Rings

Width:

3-5/8"

Phase:

1

Frame Size:

4.4

Bearings:

Sleeve

Max Ambient Temp (°F):

104°F

Duty:

Air Over

Frequency:

60 Hz

Insulation Class:

A

Poles:

4

Overload Protection:

Thermally

Approvals:

UL
