$160.77 each
In Stock
Get 16 Tomorrow, Jul 9
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: 407-CENTURY
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

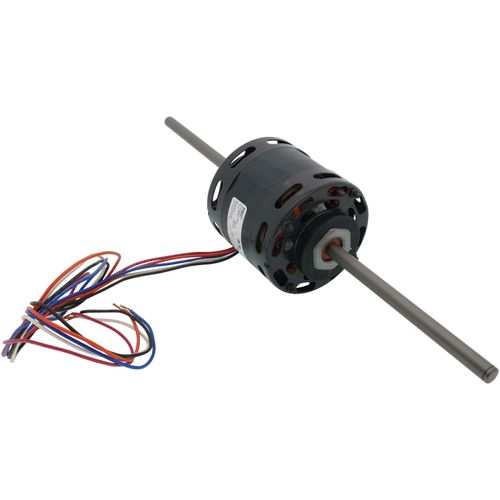

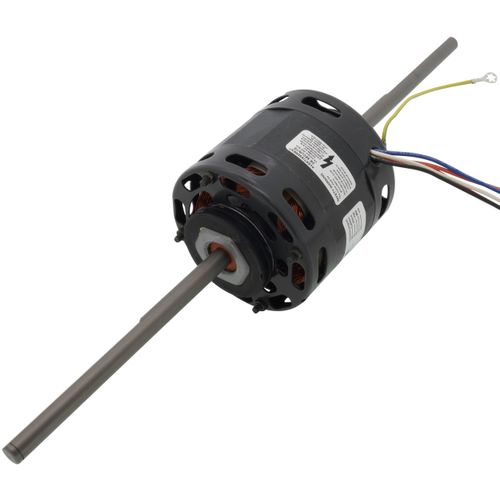

Product Highlights
–
115V
1550 RPM
Reversible
1/10, 1/15, 1/12, 1/6 HP
Resilient Rings
5.4 Amps
Description
–
Product Description
- Thermally protected
- Double Shaft end rotation
- CSA or ULc certified, UL recognized
- Extended hubs with rubber rings for base mount
- Open Ventilated Air Over shaded pole refrigeration fan motor with sleeve bearing.
- Automatic thermally protected.
- UL recognized. CSA or ULc certified.
- Mounting bracket designed to match the original motor (four 8-36 drilled and tapped holes).
- Mounting hardware included. Has 22" leads with 1/16" thick insulation. Three studs opposite shaft end are 8-32 on a standard 2.84" bolt circle, 120 degree apart.
- 115V Voltage.
- 4-Speed
- 1550 RPM
- 5.4-3.2-2.5-2.1 amps
- 4-1/8" Motor length.
Specs
–
| Type: | Shaded Pole |
|---|---|
| Amperage: | 5.4 |
| Voltage: | 115V |
| Speeds: | 4 |
| Hertz: | 60 |
| RPM: | 1550 |
| Horse Power: | 1/10 1/15 1/12 1/6 |
| Rotation: | Reversible |
| Enclosure Type: | Open Air Over |
| Mount: | Resilient Rings |
| Width: | 4-1/8" |
| Phase: | 1 |
| Bearings: | Sleeve |
| Frame Size: | 4.4 |
| Max Ambient Temp (°F): | 104°F |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | A |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
