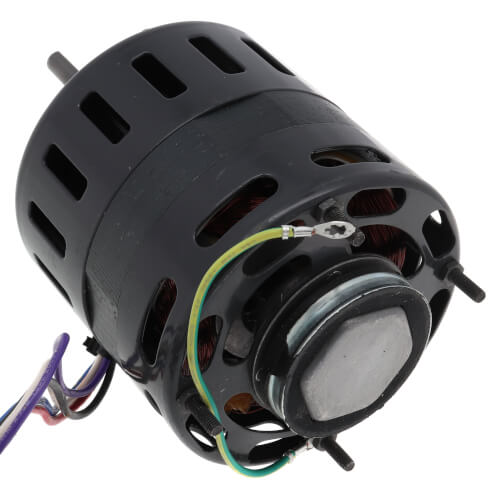

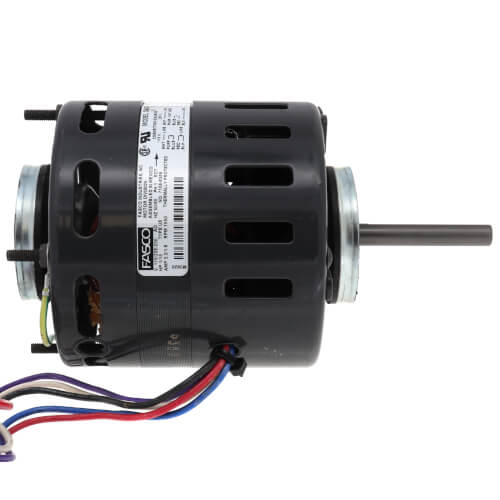

Main product image of 1-Speed 1550 RPM Condenser Fan & Heat Pump (1/15 HP, 115/208-230V)
Magnifying glass
Hover image to zoom

1-Speed 1550 RPM Condenser Fan & Heat Pump (1/15 HP, 115/208-230V)

Brand:
Fasco
SKU:
D482
Rating:
(0)
Q&A:
(0)
1-Speed 1550 RPM Condenser Fan & Heat Pump (1/15 HP, 115/208-230V)
Magnifying glass
Hover image to zoom
$194.17 each
In Stock
In Stock
Get 15 Tue, Jul 21
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115/208-230v
Product Highlight: RPM
1550 RPM
Product Highlight: Rotation
CWSE
Product Highlight: Horse Power
1/15 HP
Product Highlight: Mount
Resilient Ring - Extended Studs
Product Highlight: Amperage
3.2 Amps

Description

–
  • Motor Type: Shaded Pole
  • RPM: 1550
  • HP: 1/15
  • Volts: 115/208-230
  • Amps: 3.2-1.6
  • Hz: 60
  • Phase: Single Phase
  • Thermal Protection: Automatic
  • Speeds: 1
  • Rotation: CW Shaft End
  • Bearings: Sleeve
  • Enclosure Type: Open
  • Frame Size: 4.4" Frame
  • Motor Diameter (In.): 4.4
  • Motor Length (In.): 4
  • Shaft (In.): 3/8 X 3 1/8
  • Bolt Circle (In.): 3-29/32 (3.89)
  • Ship Weight: 8 lbs.
  • OEM Replacement for GE 2241,2242
  • Agency Approvals: UL, CSA

    • Specs

    –
    Type:

    Shaded Pole

    RPM:

    1550

    Horse Power:

    1/15

    Voltage:

    115/208-230v

    Amperage:

    3.2

    Phase:

    1

    Enclosure Type:

    Open Air Over

    Mount:

    Resilient Ring - Extended Studs

    Rotation:

    CWSE

    Speeds:

    1

    OEM:

    GE

    Frame Size:

    4.4

    Bearings:

    Sleeve

    Max Ambient Temp (°F):

    104°F

    Duty:

    Air Over

    Frequency:

    60 Hz

    Insulation Class:

    A

    Poles:

    4

    Overload Protection:

    Thermally

    Approvals:

    UL
