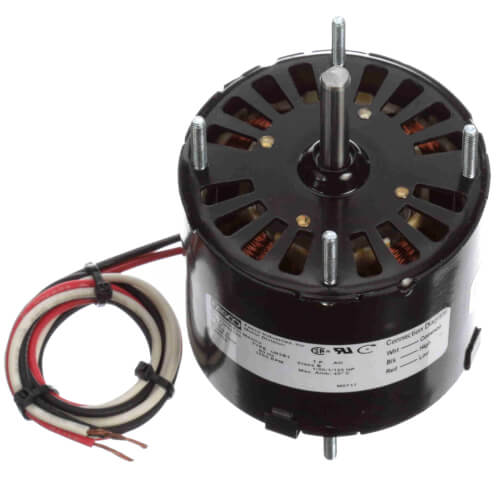

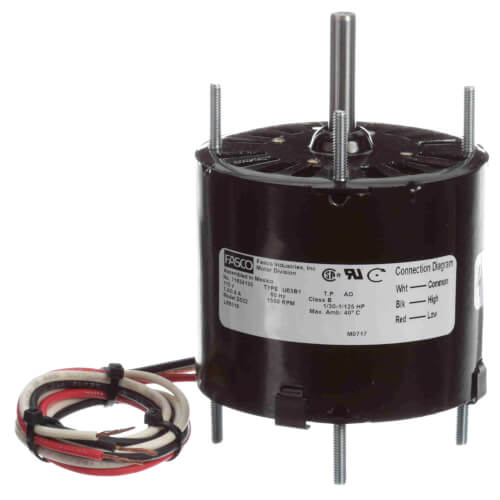

Main product image of 2-Speed 1550 RPM 1/30-1/125 HP CW Motor (115V)
Magnifying glass
Hover image to zoom

2-Speed 1550 RPM 1/30-1/125 HP CW Motor (115V)

Brand:
Fasco
SKU:
D532
Rating:
(0)
Q&A:
(0)
2-Speed 1550 RPM 1/30-1/125 HP CW Motor (115V)
Magnifying glass
Hover image to zoom
$167.96 each
In Stock
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: RPM
1550 RPM
Product Highlight: Rotation
CWSE
Product Highlight: Horse Power
1/112, 1/30 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
1.4 Amps

Description

–
Product Description
  • Thermally protected
  • Clockwise end rotation
  • CSA or ULc certified, UL recognized
  • Extended hubs with rubber rings for base mount
  • Open Ventilated Air Over shaded pole refrigeration fan motor with sleeve bearing.
  • Automatic thermally protected.
  • UL recognized. CSA or ULc certified.
  • Mounting bracket designed to match the original motor (four 8-36 drilled and tapped holes).
  • Mounting hardware included. Has 22" leads with 1/16" thick insulation. Three studs opposite shaft end are 8-32 on a standard 2.84" bolt circle, 120 degree apart.
  • 115V Voltage.
  • 2-Speed
  • 1500 RPM
  • 1.4-.8 amps
  • 2-3/4" Motor length.

Specs

–
Type:

Shaded Pole

Voltage:

115V

Amperage:

1.4

Speeds:

2

Hertz:

60

RPM:

1550

Horse Power:

1/112

1/30

Mount:

Extended Studs

Enclosure Type:

Open Air Over

Rotation:

CWSE

Width:

2-3/4"

Phase:

1

Frame Size:

3.3

Max Ambient Temp (°F):

104°F

Bearings:

Sleeve

Duty:

Air Over

Frequency:

60 Hz

Insulation Class:

B

Poles:

4

Overload Protection:

Thermally

Approvals:

UL
