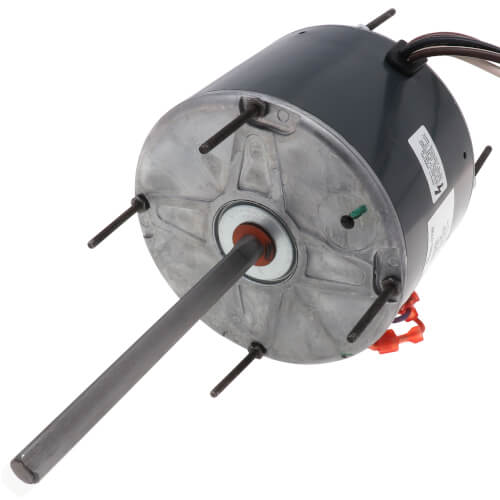

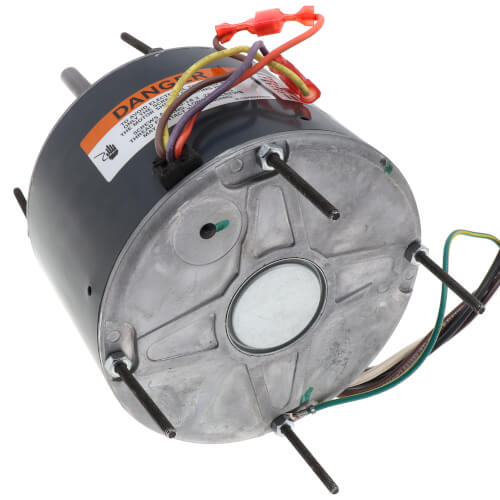

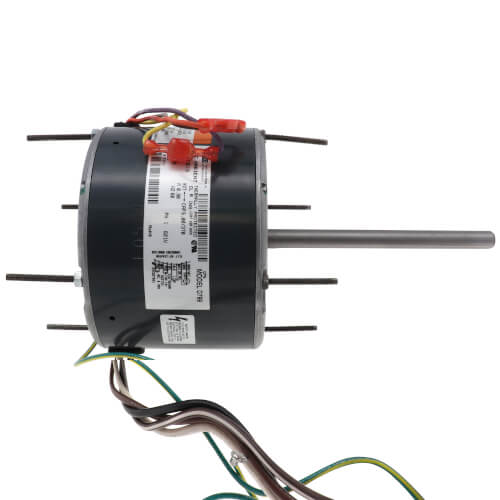

Main product image of 1-Speed 825 RPM Motor (0.9A, 208-230V)
Magnifying glass
Hover image to zoom

1-Speed 825 RPM Motor (0.9A, 208-230V)

Brand:
Fasco
SKU:
D799
Rating:
(0)
Q&A:
(0)
1-Speed 825 RPM Motor (0.9A, 208-230V)
Magnifying glass
Hover image to zoom
$198.46 each
In Stock
In Stock
Get 24 Fri, Jun 12
Order by today, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208/230V
Product Highlight: RPM
825 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/8 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
0.9 Amps

Description

–
  • Motor Type: Permanent Split Capacitor
  • RPM: 825
  • HP: 1/8
  • Volts: 208-230
  • Amps: 0.90
  • Hz: 60
  • Phase: Single Phase
  • Overload: Automatic
  • Speeds: 1
  • Rotation: Reversible
  • Bearings: Sleeve
  • Enclosure Type: Totally Enclosed
  • Frame: 48
  • Diameter (In.): 5-5/8
  • Shaft Length (In.): 6

    • Specs

    –
    Type:

    Permanent Split Capacitor

    RPM:

    825

    Horse Power:

    1/8

    Amperage:

    0.9

    Voltage:

    208/230V

    Phase:

    1

    Rotation:

    Reversible

    Enclosure Type:

    Totally Enclosed Air Over (TEAO)

    Mount:

    Extended Studs

    Speeds:

    1

    Diameter (Inches):

    5-5/8"

    Frame Size:

    48

    Max Ambient Temp (°F):

    104°F

    Bearings:

    Sleeve

    Duty:

    Continuous Air Over

    Frequency:

    140 Hz

    Insulation Class:

    B

    Poles:

    8

    Overload Protection:

    Thermally

    Approvals:

    UL
