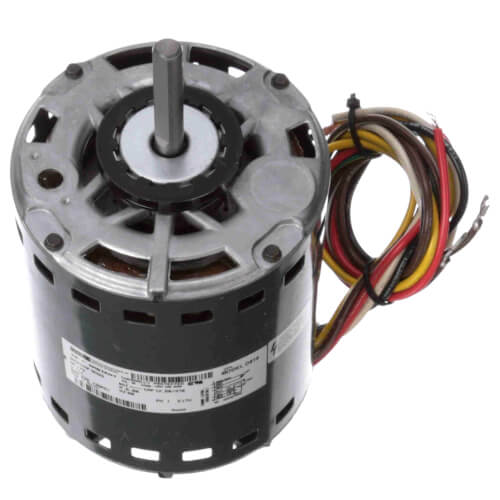

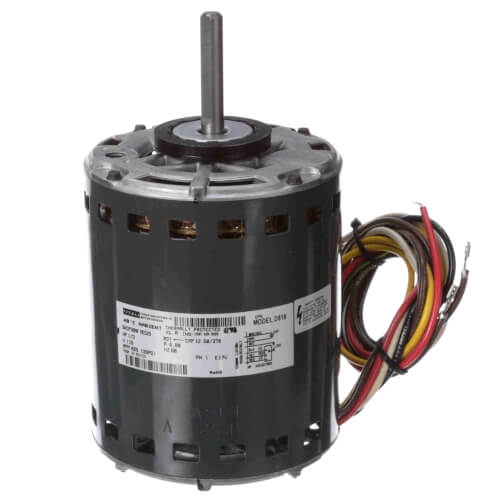

Main product image of D818 3 Speed 825 RPM Permanent Split Capacitor (115V)
Magnifying glass
Hover image to zoom

D818 3 Speed 825 RPM Permanent Split Capacitor (115V)

Brand:
Fasco
SKU:
D818
Rating:
(0)
Q&A:
(0)
D818 3 Speed 825 RPM Permanent Split Capacitor (115V)
Magnifying glass
Hover image to zoom
$410.88 each
Backorder
Backorder
Get it Thu, Jul 16 - Thu, Aug 13
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: RPM
825 RPM
Product Highlight: Rotation
CCW
Product Highlight: Horse Power
1/6, 1/3, 1/5 HP
Product Highlight: Mount
Resilient Rings
Product Highlight: Amperage
7.3 Amps

Description

–
D818 3 Speed 825 RPM Permanent Split Capacitor (115V)

Features:
  • Base mount, sleeve bearings, automatic thermal protection
  • Single shaft open enclosure
  • Capacitor not included
  • Thermal Protection: Automatic
  • Speeds: 3
  • Rotation: CW Shaft End
  • Bearings: Sleeve
  • Frame Size: 5.6" Frame
  • Motor Diameter (In.): 5.6
  • Motor Length (In.): 6 3/4
  • Shaft (In.): 1/2 X 3
  • Bolt Circle (In.): 5-6/32 (5.2)
  • OEM Replacement for Lennox P-8-8325, 5KCP39-PGD698S
  • Agency Approvals: UL, CSA
**Note: Image may not represent actual product**

Specs

–
Type:

Permanent Split Capacitor

Horse Power:

1/6

1/3

1/5

Voltage:

115V

RPM:

825

Speeds:

3

Amperage:

7.3

Rotation:

CCW

Enclosure Type:

Open Air Over

Mount:

Resilient Rings

Width:

6-3/4"

Hertz:

60

Phase:

1

Frame Size:

48

Bearings:

Sleeve

Max Ambient Temp (°F):

104°F

Duty:

Continuous Air Over

Frequency:

60 Hz

Insulation Class:

B

Poles:

8

Overload Protection:

Thermally

Approvals:

UL
