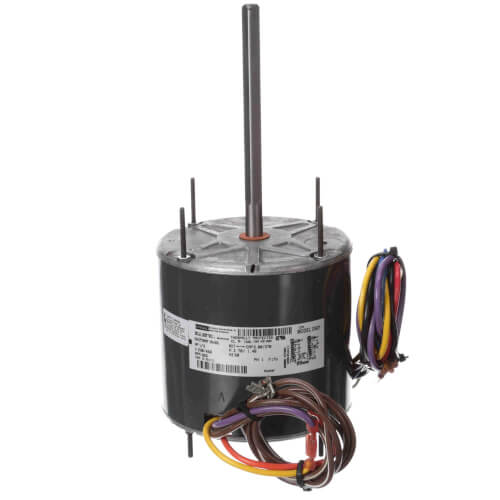

Main product image of D921 1 Speed 825 RPM Condenser Fan Motor (230/460V)
Magnifying glass
Hover image to zoom

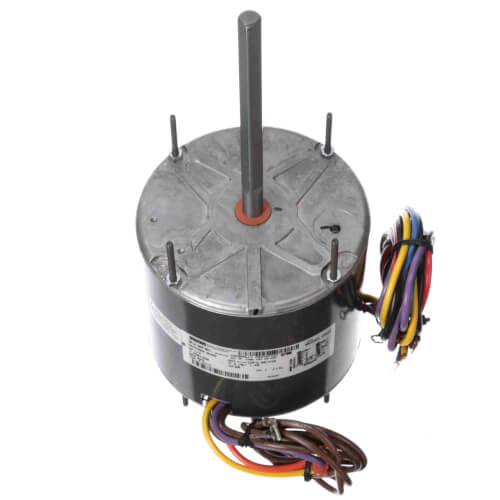

D921 1 Speed 825 RPM Condenser Fan Motor (230/460V)

Brand:
Fasco
SKU:
D921
Rating:
(0)
Q&A:
(0)
D921 1 Speed 825 RPM Condenser Fan Motor (230/460V)
Magnifying glass
Hover image to zoom
$445.79 each
In Stock
In Stock
Get 4 Wed, Jul 8
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
230V, 460v
Product Highlight: RPM
825 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/3 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
2.7 Amps

Description

–
Primarily used in commercial rooftop air conditioning units.

Features:
  • NEMA 48 frame, PSC motors
  • Ball bearings for all-angle mounting, automatic reset overload protection
  • Motors except include conduit box
  • Class B insulation systems, lead end bell open all models, shaft end bell closed except as noted
  • Rotation: electrically reversible, capacitor not included
  • Phase: Single Phase
  • Thermal Protection: Automatic
  • Speeds: 1
  • Rotation: Reversible
  • Bearings: Ball
  • Enclosure Type: Open
  • Frame Size: 5.6" Frame
  • Motor Diameter (In.): 5.6
  • Motor Length (In.): 5 1/4
  • Shaft (In.): 1/2 X 6-3/8
  • Bolt Circle (In.): 5-6/32 (5.2)
  • Ship Weight: 19 lbs.
  • Agency Approvals: UL, CSA
**Note: Image may not represent actual product**

Specs

–
Type:

Permanent Split Capacitor

Horse Power:

1/3

Voltage:

230V

460v

RPM:

825

Speeds:

1

Amperage:

2.7

Rotation:

Reversible

Enclosure Type:

Open Air Over

Mount:

Extended Studs

Width:

5-1/4"

Hertz:

60

Phase:

1

Bearings:

Ball

Max Ambient Temp (°F):

104°F

Frame Size:

48

Duty:

Continuous Air Over

Frequency:

140 Hz

Insulation Class:

B

Poles:

8

Overload Protection:

Thermally

Approvals:

UL
