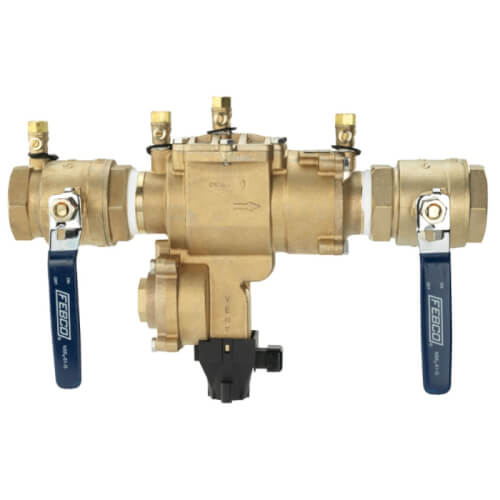

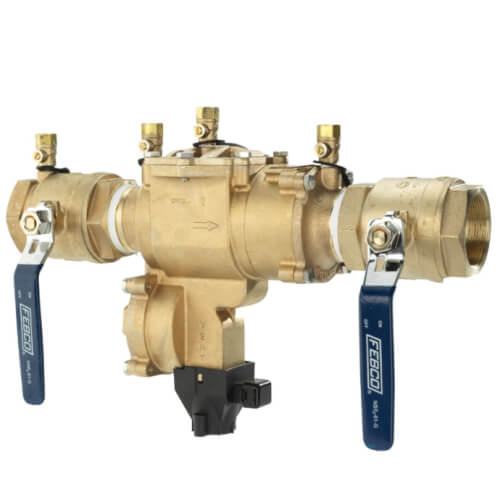

1-1/2" LF860-QT-RP-FS Lead Free Quarter Turn Reduced Pressure Zone Assembly w/ Flood Sensor Connectivity

This 1-1/2" lead free reduced pressure zone backflow preventer assembly prevents the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. It is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This reduced pressure zone backflow preventer assembly consists of a lead free bronze body, threaded quarter turn ball valves, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Lead Free Bronze
• Inlet Connection Size: 1-1/2"
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 1-1/2"
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Series: LF860 Small
