24v Control for CAS-4

This kit is designed to control more than one appliance on a system using the Field Controls CAS-4 Combustion Air System with a chimney vented gas fired system. The controls in the CAS-4 will operate only one appliance, therefore a CAC-24 is required for each additional appliance to be added to the same CAS-4 unit. One CAS-4 unit can handle at max, a total combined firing rate input of up to 500,000 BTU/Hr. Refer to the instructions included with the CAS-4 for more details and other restrictions.

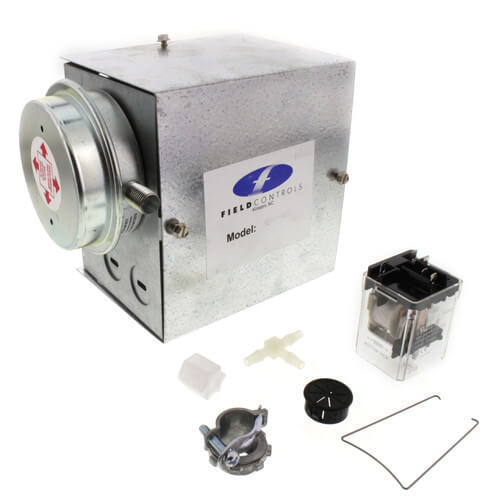

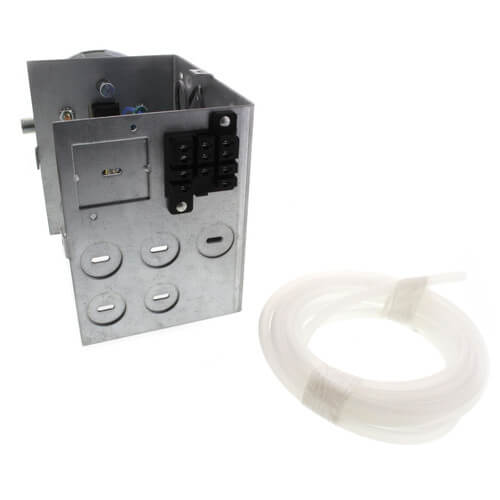

Kit Includes

• 1) Junction box with mounted fan proving switch and relay base
• 1) 24 VAC relay
• 1) Conduit connector
• 1) 10 Ft. length of 1/4 inch plastic tubing
• 1) Plastic Tee
