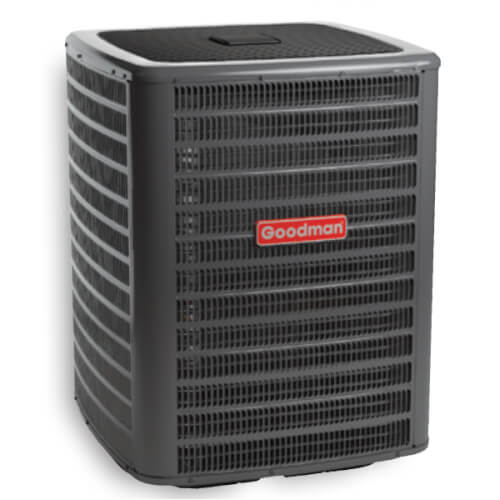

Main product image of GSXC16 5 Ton 16 SEER 2-Stage Central Air Conditioner w/ R-410A Refrigerant

Hover image to zoom

GSXC16 5 Ton 16 SEER 2-Stage Central Air Conditioner w/ R-410A Refrigerant

Name: GSXC16 5 Ton 16 SEER 2-Stage Central Air Conditioner w/ R-410A Refrigerant
Brand: Goodman
SKU: GSXC160601
Price: 3244.85 USD
Availability: OutOfStock

Brand:

Goodman

SKU:

GSXC160601

Rating:

(0)

Q&A:

(0)

GSXC16 5 Ton 16 SEER 2-Stage Central Air Conditioner w/ R-410A Refrigerant

Hover image to zoom

GSXC160601 has been discontinued

Discontinued February 1, 2023

This product was discontinued by the manufacturer.

MANUALS (3)

Replacement Parts

Direct Replacement:

GSXC 5 Ton, 17.2 SEER2 Premium Central Air Conditioner

Brand:

Goodman

SKU:GSXC706010

(0)

Backorder

Get it Tue, Jul 7 - Thu, Aug 6

VIEW REPLACEMENT

Product Highlights

–

23400 BTUs

5 Year Limited Warranty

Yes

253v

16 Rating

Description

–

Features:

Energy efficient two-stage scroll compressor
Two-speed PSC condenser fan motor
ComfortBridge Communications System compatible
Factory-installed filter drier
Factory-installed high and low-pressure switches
High-density foam compressor sound blanket
Copeland® ComfortAlert built in diagnostics
Fully charged for fifteen feet of tubing length
Factory-installed sensors monitoring coil and ambient temperature
Contactor with lug connection
In communicating mode, only two low voltage wires to the outdoor unit are required
AHRI Certified - ETL Listed
Ground lug connection
Color-coded terminal strip for non-communicating set-up
Copper tube & enhanced aluminum fin coil
Customized control algorithms

Benefits:

The two-stage scroll compressor runs at either 65% or 100% capacity, depending on cooling/heating demand. This operational flexibility provides a great energy-efficient option when compared to a traditional, single-stage unit.
A two-speed permanent split capacitor (PSC) condenser fan motor is designed to efficiently provide two levels of operation depending on your airflow needs.
Designed to regulate and communicate with your ComfortBridge Controls System so you can remotely monitor and manage your heating and cooling system at any time, from anywhere with just an internet connection.
Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter''s residual system contaminants and moisture.
A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the designated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
High-density foam compressor blanket provides noise reduction when the compressor is in operation.
Assists contractors in troubleshooting the system with improved diagnostic accuracy by utilizing indicator lights, seven-segment LED display, and fault code storage.
Fully charged with refrigerant sufficient for 15 of tubing length to assist with easy installation of unit.
Consistent and concise monitoring helps to ensure that the system is operating efficiently, regardless of the weather.
Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
By simplifying the communication connection to two low voltage wires to the outdoor unit, technicians may eliminate the need to run additional thermostat wiring.
Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
Contractors can easily and securely connect the ground wire with a screw lug.
A straight-forward, color-coded terminal strip for non-communicating set-up helps to simplify installation.
Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.
Proprietary, self-contained sequence of actions designed to help control system operation for energy efficient performance and enhanced reliability.

Specs

–

Application:	HVAC
Type:	Split System
SEER:	16
Compressor:	Scroll
Cooling Capacity (BTU):	23400
Ton:	5
Voltage:	253v
Energy Star Rated:	Yes
Country of Origin:	USA
Features:	Standard
Warranty:	5 Year Limited
