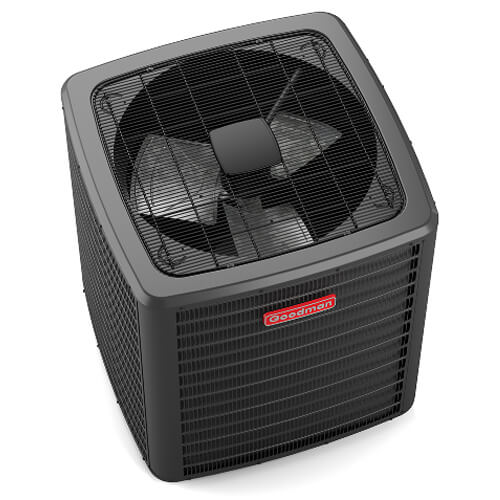

GSXH 3 Ton, 15.2 SEER2 Enhanced Central Air Conditioner

Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.

The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.

Please check the SEER2 site to ensure efficiency compliance for your region.

Goodman GSXH5 3 Ton, 15.2 SEER2 High-Efficiency Split System Air Conditioner

Standard Features:

• High-Efficiency Scroll Compressor
• Copper tube/enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds

Specifications:

• Model: GSXH5
• Cooling Capacity BTU: 36,000 Btu/H
• Efficiency: 15.2 SEER2
• Compressor: Single Stage
• Energy Certified: Yes
• Liquid Line Connection Size: 3/8"
• Suction Line: 7/8"
• Maximum Voltage: 253 V
• Comfort Net Compatible: Yes
• Tonnage: 3 tons
