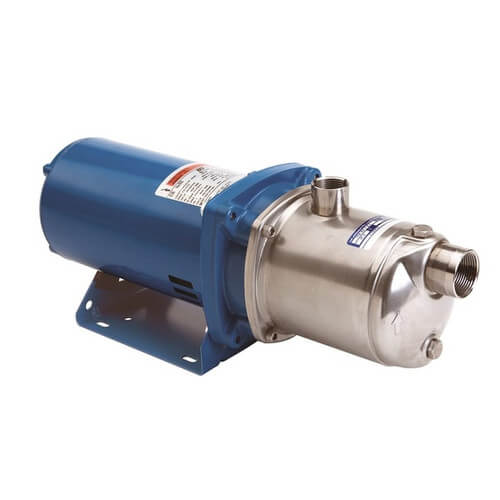

4 Stage Horizontal Centrifugal Pump (3 Ph, 1 HP, 15 GPM, 3550 RPM)

The HMS is a close coupled, horizontal multi-stage centrifugal end suction top discharge pump manufactured of 316L stainless steel. Case drain/vent is provided as standard. Enclosed impellers with unique floating seal ring design maintain maximum efficiencies over the life of the pump without adjustment. The HMS is specifically designed for filtration systems, water circulation, booster services, liquid transfer, spraying systems, OEM applications, jockey pump service, reverse osmosis, and washing/cleaning systems.

Features:

• Close coupled, space saving design provides easy installation.
• Fabricated 316L stainless steel, end suction top discharge, case drain/vent provided as standard.
• Enclosed impellers with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment.
• Mechanical seal has carbon/silicon carbide faces, 316 series stainless steel metal components and EPR elastomer. Optional elastomers available.

Applications:

• Filtration systems
• Water circulation
• Booster services
• Liquid transfer
• Spraying systems
• OEM applications
• Jockey pump service
• Reverse osmosis
• Washing/cleaning systems
