$201.44 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
UPS15-42F, UP15-42B5/B7, UP15-42BUC5/BUC7, UP15-42SU/SF
Description
–

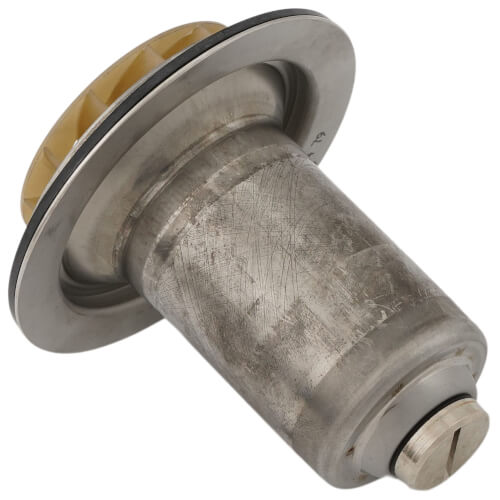

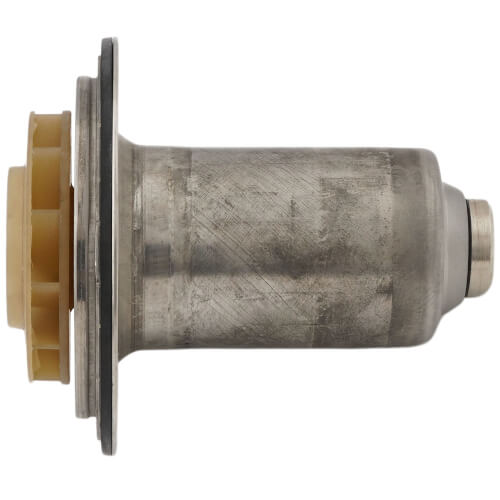

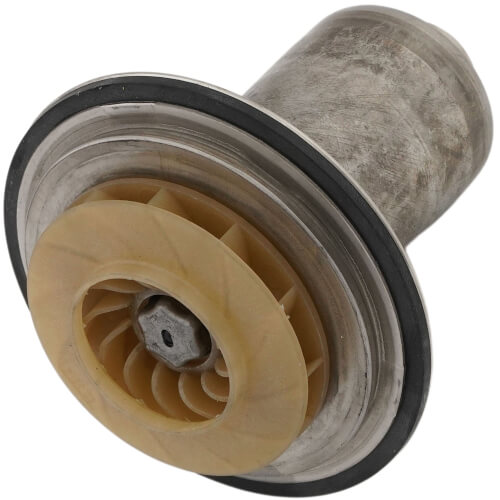

Grundfos 506173 Cartridge Kit for Select UP Series Circulators
A genuine Grundfos replacement cartridge kit used to restore operation in select Grundfos UP/UPS series circulator pumps without replacing the entire pump body when the correct cartridge kit is required.
Key Features
Compatibility & Applications
Installation & Operation Notes
Maintenance & Troubleshooting
User Reviews & Q&A Summary
A genuine Grundfos replacement cartridge kit used to restore operation in select Grundfos UP/UPS series circulator pumps without replacing the entire pump body when the correct cartridge kit is required.
Key Features
- Replacement cartridge kit (service "wet end"/rotor-style replacement) for select UP/UPS circulators
- Listed for use with UPS15-42F (115V), UP15-42B5/B7 (115V), UP15-42BUC5/BUC7 (115V), and UP15-42SU/SF (115V)
- Application listed: Heating
- Type listed: Replacement Part
Compatibility & Applications
- Listed for these specific pump models: UPS15-42F, UP15-42B5/B7, UP15-42BUC5/BUC7, UP15-42SU/SF (all 115V as listed).
- Must only be used where the manufacturer specifies this exact part number: 506173.
Installation & Operation Notes
- Installation should be performed by a qualified hydronic/HVAC service technician.
- Reference the pump and system service/installation documentation for safe isolation, correct disassembly/reassembly, and proper checkout after replacement.
- Grundfos UP-series guidance includes important installation/operation cautions (for example, do not operate the pump without water circulation, and avoid mounting positions that place the pump shaft vertical).
Maintenance & Troubleshooting
- This kit is typically used when troubleshooting points to a failed cartridge/rotor assembly (for example, a seized or non-operational circulator) and the pump body is still serviceable.
- If the pump still fails after installing a new cartridge, user feedback highlights checking the pump housing/body condition (some report discovering the pump housing was worn) before assuming the new cartridge is the issue.
User Reviews & Q&A Summary
- Restores circulation / avoids full pump replacement: Many reviewers report it brought a boiler/radiant circulator back online and saved the cost/effort of replacing the whole pump.
- Ease of install: Common feedback describes a quick swap (often around 15 minutes) with no wiring changes - typically removing a small set of screws/bolts to exchange the cartridge.
- Removal can be the hard part: Several users note the old cartridge can be difficult to remove if it's swollen or seized, requiring persistence.
- Obsolete-pump support & spares: Some reviewers buy it specifically because their pump model is discontinued and/or to keep a spare on hand.
- Fit/diagnosis caution: At least one review notes the cartridge was correct, but the pump housing/body was worn and needed attention instead.
Specs
–
| Application: | Heating |
|---|---|
| Type: | Replacement Part |
| Used With: | UPS15-42F UP15-42B5/B7 UP15-42BUC5/BUC7 UP15-42SU/SF |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 14 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 14 reviews
yes
I received correct one. My pump housing was worn out. Had to return for credit
d
Texas
7 months ago
Verified Buyer
Was this review helpful to you?
Perfect fit and performance.
Both products are exactly what were specified.
Mike
Campbellsport Wisconsin
12 months ago
Verified Buyer
Was this review helpful to you?
Great service great part
The staff was great finding me a replacement part as the assembly was no longer available. It fit perfectly and saved me almost $300. Thanks
Cshin
Michigan
4 years ago
Verified Buyer
Was this review helpful to you?
Radiant heat pumpa
This was just what I needed. A hard to find part, but you guys had it. It repaired the system. Thanks
Mike
Issaquah, WA
4 years ago
Verified Buyer
Was this review helpful to you?
If you have a failed pump, buy this
I bought a replacement rotor/motor assembly for my Grundfos pump. If was easy to replace, took 15 minutes. Now my boiler circulation pump is back up and running.
Ryan
Burien, WA
6 years ago
Verified Buyer
Was this review helpful to you?
A Quick Replacement Option
Installed simply, however, with some difficulty of removing old cartridge. No body of the current pump needed to be replaced.
ZSupplyH
Accord, NY
6 years ago
Verified Buyer
Was this review helpful to you?
I will buy again
Cartridge is simple to install
Terry
Winchester ca
6 years ago
Verified Buyer
Was this review helpful to you?
Great Repair part
When this Grundfos pump is installed at times it overheats causing the pump to freeze up. The availability of this sel-contained pump rotor allows repair without removal of the pump body. This is accomplished by shutting off the water supply, then removing the 4 hex screws attaching it to the main pump body. You now have access to the armature. Pull the rotor body and replace (sometimes it can be swollen and a bit difficult to remove, but persevere).
Replace the unit and you're good to go....no wire changes, just the 4 hex screws....simple!
Henry
Virginia
7 years ago
Verified Buyer
Was this review helpful to you?
Great rebuild kit for a now obsolete pump
This is my second one of these -- not because the first one went bad, but because I wanted a spare "just in case". Easy to install and no plumbing changes. Original pump siezed up after about 6 years. The first replacement has been working fine for about 4 years now. I may not ever need a second rebuild kit, but if I ever do I have one.
DSO
Los Gatos, CA
7 years ago
Verified Buyer
Was this review helpful to you?
Designed to be replaced
The cartridge in my discontinued gGrundfos 15-42su had a broken ceramic shaft. I realized while trouble shooting that this part was designed to be replaceable while the flow assembly is still attached to the system its a Great design and a super easy fix without tossing the whole assembly!
While the kit seems spendy, its less than a new pump and supply house had the lowest price. Unfortunately supply house shipping to Washington state took 9 days which was more days than I expected.
Happy homeowner
WA
10 years ago
