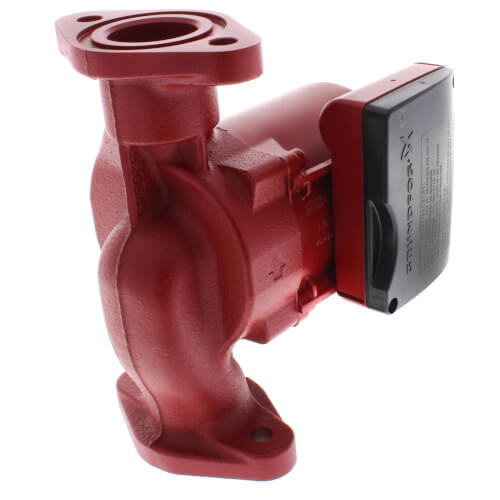

52722373 has been discontinued
Discontinued March 6, 2020
This product was discontinued by the manufacturer.
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:
UPS26-99FC, 3-Speed Circulator Pump, 1/6 HP, 115 volt
Product Highlights
–
115V
1/6 HP
Flanged x Flanged Connection
41 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Note: This circulator requires:
539605: 1-1/2" Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only)
Features
539605: 1-1/2" Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only)
Features
- 1/6 HP
- 115 Volts
- Pump Connection: GF 40/43 Flange
- Built-in motor protection for long life
- Multiple accessories for a variety of applications
- Whisper-quiet operation for sound sensitive installations
- Applications include, Hydronic heating, Fan coil heating, Solar heating, and Radiant heating systems
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 2.15 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Type: | 1-Speed Pump |
| Horse Power: | 1/6 |
| Max Flow (GPM): | 41 |
| Flow Range (GPM): | 0-41 |
| Max Head (Ft): | 25 |
| Head Range (ft.): | 0-25 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3150 |
| Temperature Range (F): | 32°F - 230°F |
| Connection Size: | 1-1/2" |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Material
Amperage
Application
Voltage
Max Pressure (PSI)
CURRENT ITEM
Cast Iron
2.15
Heating
115V
145
4 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 9 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-9 of 9 reviews
Running for 14 years
I have been running this pump on a large hydronic heating system, (6 zones 5,000 sq ft) for 14 winters with zero issues.It is quiet and powerful, as well as very reliable.
Steve
UT
7 years ago
Was this review helpful to you?
I would buy this item again
Easy to install
Bad289
Columbia city
8 years ago
Verified Buyer
Was this review helpful to you?
Circulator Pump UP43-75F
Was an exact replacement. Used in a 3 story apartment building for hot water heat. High circulation rate.
Kirk
Edinboro, PA
11 years ago
Verified Buyer
Was this review helpful to you?
Easy installation
the pump was an updated version of the same pump and installation was very easy great pump.
gus
Tioga,ND
11 years ago
Verified Buyer
Was this review helpful to you?
perfict fit
great retro fit
boss man
Arlington,tx
11 years ago
Verified Buyer
Was this review helpful to you?
I woud buy this product again!
These pumps are great, we have no problems installing them. We use these on our boilers.
Snowman
Findlay, Oh
12 years ago
Verified Buyer
Was this review helpful to you?
Received order fast and quickly. No foo
Exact replacement for a burned out pump. Great pump, but Winter freeze of system caused loss of water in system.
Tom
Klamath Falls, Of
12 years ago
Verified Buyer
Was this review helpful to you?
Great Pump
Simple! Great Pump
Steve
Post Falls ID
14 years ago
Verified Buyer
Was this review helpful to you?
Great stuff
Replaced a 50 year old pump for which parts were unavailable. Smaller, quieter, cheaper than the competition and it performs as needed. I got no complaints at all.
Probitas
Milwaukee, WI
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: My Grundfoss 52722363 says max temperature is 230F. The spec sheet says about 70 degrees less, what's up? This could be a problem if impeller is rated for lower temp but unit is rated higher.
Asked by Ross 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe liquid temperature range is 32-230 degrees. The maximum ambient temperature: 104 °F, and the ambient max at 176°F for the liquid is 176 °F.
Was this review helpful to you?
Q: is the rotor impellar available as a replacement part?
Asked by auburn cleaner 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe rotor impeller is not available as a replacement part for this pump.
Was this review helpful to you?
Q: what is the distance form flange to flange and the distance between bolt holes
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffFlange to flange distance is 8 1/2"; bolt to bolt is 3 7/16".
Was this review helpful to you?
Q: what size circulating pump would i need for an 11/2'' line and it feeds 6 single level townhomes that are all baseboard heat
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThere are many factors that contribute to pump sizing. For example, you need to know the run for the zone with the most amount of pipe, as well as the gallons per minute and the feet of head needed for your application.
