Product Highlights
Description
Features:
- Built-in motor protection for longer life and better performance.
- Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
- Whisper-quiet operation for sound sensitive installations.
- Includes (2) Gaskets (O-rings).
- UL/CSA listed.
Applications:
- Closed loop radiant heating & snow melting systems.
- Baseboard/Radiator/Fan coil heating and other hydronic heating applications.
- And others.
Specs
| Frequency: | 60 Hz 60 Hz |
|---|---|
| Material: | Cast Iron |
| Poles: | 2 |
| Mount: | In-Line |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Type: | 3-Speed Pump |
| Features: | Integral Check Valve |
| Horse Power: | 1/6 |
| Flow Range (GPM): | 0-33 |
| Max Flow (GPM): | 33 |
| Max Head (Ft): | 29 |
| Head Range (ft.): | 0-29 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3380 |
| Temperature Range (F): | 36°F - 230°F |
| Connection Size: | 1" 1-1/2" 1-1/4" 3/4" |
| Connection Type: | Flanged x Flanged |
Questions?
Compare Similar Products
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
Great Pump
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product fine, access to building, difficult
Heavy duty!
I ordered the wrong pump.
Circulator
Good quality product
product as described
Superb as usual
I would buy this boiler again.
Same pump as original with speed options
I would buy this again if needed
Yes, one month later everything is ok
Product Q&A
8 QuestionsQ: Do I need to specify 1 inch or 3/4 inch with these pumps? Or does the pump fit whatever flange I put on it? Thanks
Asked by st 12 years ago
Add your answer
Pipe flange determines pipe size. Pump is installed on whatever flange you needd JHP from my S3
Flange match, not the pipe. I have hydronic heat and the local plumbers don't stock the pump. So it is no heat and then at least twice the Internet price for the pump when they get it. I just keep one in stock. Pat Artis Sent from my iPad
It is not neccessary to specify pipe size. Most flanges will fit this pump. -PrecisionMan
Q: I have a UPS 26-99FC that I used in a closed system. Can I use in my new open system before heat exchanger?
Asked by Jake 12 years ago
Add your answer
Verified Reply- PexSupply StaffCast iron circulators like this one should only be used where there will be no fresh oxygen present (i.e. the closed-loop side of the heat exchanger).
Q: I HAVE AN OUTDOOR WOOD BOILER WITH THIS PUMP. WHAT WOULD BE THE IDEAL SPEED SETTING ANDHOW MANY GAL/MIN DOES EACH SETTING PROVIDE. DO I NEED THE CHECK VALVE ON THIS OPEN SYSTEM BOILER? THANKS
Asked by Marty 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe pump curve displayed on page 3 of the manual linked below shows the flow rate capabilities of this circulator at various head pressure ratings for each of the 3 speeds. The check valve may not be necessary in this application, as its primary purpose is to prevent heat from flowing to zones that are not calling for heat. We would, however, recommend a bronze or stainless steel circulator in an open system. http://s3.pexsupply.com/manuals/1297872762860/47830_PROD_FILE.pdf
Q: Why can't I use cast iron pumps for potable water systems?
Asked by Nau 14 years ago
Add your answer
Verified Reply- PexSupply StaffCast iron will rust in an open system.
Q: I have just purchased a new UPS26-99BFC and I want it to run at only the fastest speed. How do I connect it up to achieve this?
Asked by bob 14 years ago
Add your answer

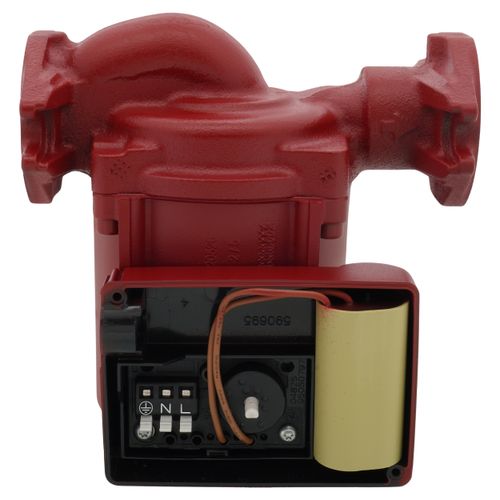

Verified Reply- PexSupply StaffThere is a switch on the side of the circulator that allows you to select among the three speed settings.
Q: I have a 5 zone heating system. Will this pump automatically change speeds to accommodate the need to heat more zones? If not how do I know which speed is the best for lowest power consumption but also best performance?
Asked by Ted in Colorado 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis pump will accommodate 5 zones. For information on speeds, consult the flow chart on page 3 of the product specifications: http://s3.pexsupply.com/manuals/1297872762860/47830_PROD_FILE.pdf
The flow chart is clear...to an engineer, but tells a layman nothing.
Q: What is the ampage?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the product specifications: http://s3.pexsupply.com/manuals/1297872762860/47830_PROD_FILE.pdf
Q: What is the warranty on this pump? We have one installed in 2007 - and it needs replacing. Thank you.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffProducts manufactured by Grundfos Pumps Corporation (Grundfos) are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.
