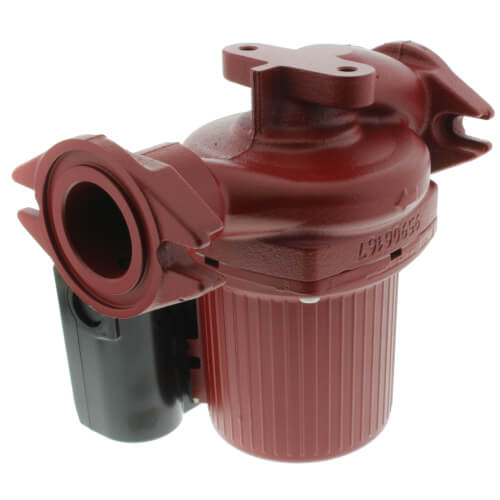

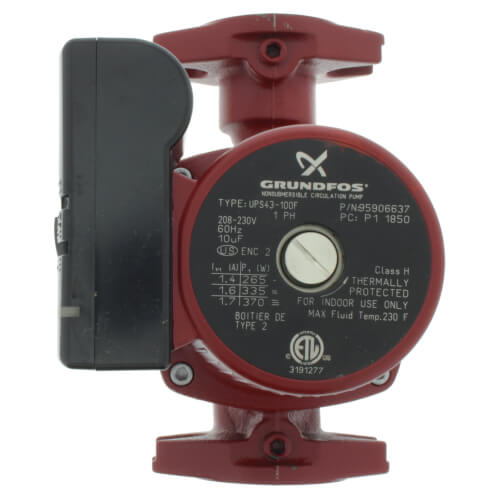

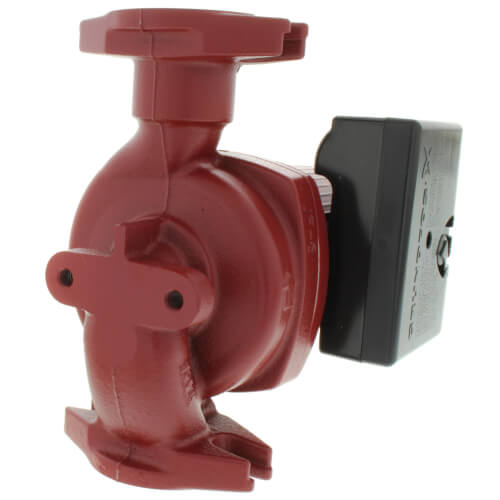

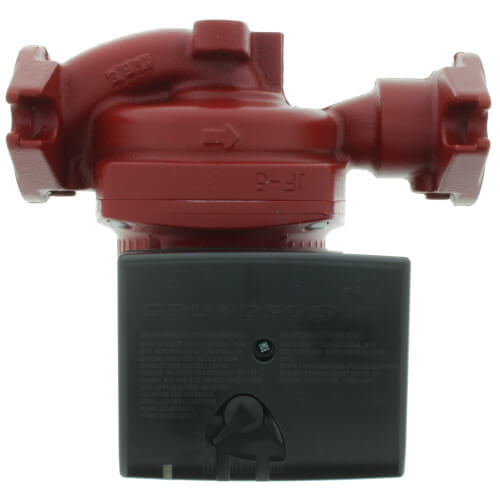

UPS43-100F 3-Speed High Flow SuperBrute Flanged Circulator Pump, 230V
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$525.07 each
In Stock
Get 6 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
3 Year Warranty
Flanged x Flanged Connection
60 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Note: This circulator requires:
539605: 1-1/2" Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only)
One of the main features of a SuperBrute is its 3-speed motor. This unique motor advancement, pioneered by Grundfos more than 30 years ago, allows you the ability to adjust the pump speed to fit your specific application. Flexibility to choose your speed gives you the peace of mind that you have the correct pump for the job. The versatility of the SuperBrute not only reduces the number of circulators you have in your truck, but also reduces your installation time and callbacks.
Features:
539605: 1-1/2" Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only)
One of the main features of a SuperBrute is its 3-speed motor. This unique motor advancement, pioneered by Grundfos more than 30 years ago, allows you the ability to adjust the pump speed to fit your specific application. Flexibility to choose your speed gives you the peace of mind that you have the correct pump for the job. The versatility of the SuperBrute not only reduces the number of circulators you have in your truck, but also reduces your installation time and callbacks.
Features:
- Lower inventory - increased profitability
- Easy to install - easy to service
- Reliable starts - trouble-free performance
- Quiet - wet rotor technology
- Uses GF 40/43 Flange
- Industry leading three-year warranty
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Material: | Cast Iron |
| Application: | Heating |
| Type: | 3-Speed Pump |
| Voltage: | 230V |
| Hertz: | 60 |
| Phase: | 1 |
| Max Pressure (PSI): | 145 |
| Flow Range (GPM): | 0-60 |
| Max Flow (GPM): | 60 |
| Max Head (Ft): | 30 |
| Head Range (ft.): | 0-30 |
| Poles: | 2 |
| Mount: | In-Line |
| Connection Size: | 1-1/2" |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
