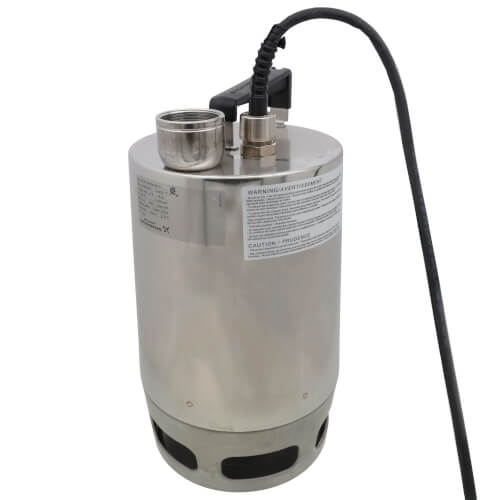

Unilift AP35 Submersible Effluent Pump, 1-1/2" NPT, 3/4 HP, 25' Cord (230V)

AP35.40.06.1.V - Unilift AP35 Submersible Effluent Pump, 1-1/2" NPT, 3/4 HP, 25' Cord (230V) The Unilift AP35 pump is a single-stage, submersible pump designed for pumping drainage water and effluent. The pump is suitable for these applications:

• groundwater lowering
• pumping in drainage collecting tanks
• pumping in surface water collecting tanks with inflow from roof gutters, shafts, tunnels, etc.
• emptying of ponds, tanks, etc.
• pumping of fibre-containing wastewater from laundries and industries
• pumping of domestic wastewater without discharge from water closets.
• Maximum particle size: 1.4"
• Liquid temperature range: 32 °F to 131 °F.

The stainless steel pump sleeve is made in one piece and equipped with an insulated carrying handle. The suction strainer is clipped on to the pump housing for easy removal in connection with maintenance. The strainer prevents the passage of large solids and ensures a slow flow into the pump. The stainless steel pump housing is fitted with an internal riser pipe ensuring high efficiency. The riser pipe has a number of holes enabling efficient cooling of the motor during operation. The cable entry is of the socket and plug connection type, allowing for quick and easy dismantling.
All Unilift AP35 pumps have a threaded 1.5 NPT vertical discharge port.
The stainless steel shaft rotates in maintenance-free pre-lubricated ball bearings.
The stainless steel impeller is a vortex impeller with L-shaped blades and a clearance of 1.38" in the pump housing. The blades are curved backwards to reduce any harmful effect from solid particles and to minimise power consumption. The impeller has a protective cap to prevent the deposit of long-fibred material.
The shaft seal is a combination of a mechanical, bellows shaft seal and a lip seal with 2 fl.oz. oil between. Seal faces are made of silicone carbide.
