96860201 has been discontinued
Discontinued July 6, 2021
This product was discontinued by the manufacturer.
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
SCALA1 3-45 Water Booster Pump w/ NEMA 6-15 Plug (230V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
POM + 25% Glass Fiber
230V
3/4 HP
1" MPT
109 MAX PSI
95°F Max Temp
Description
–

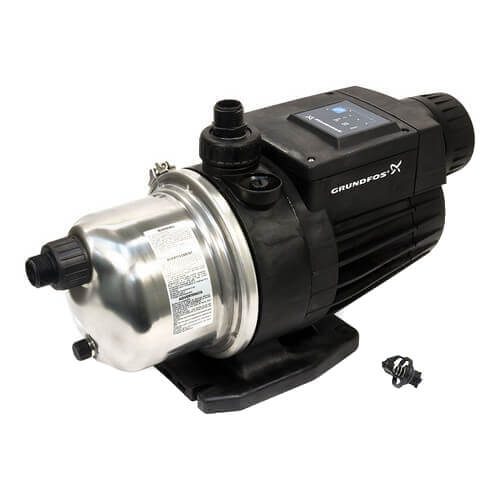

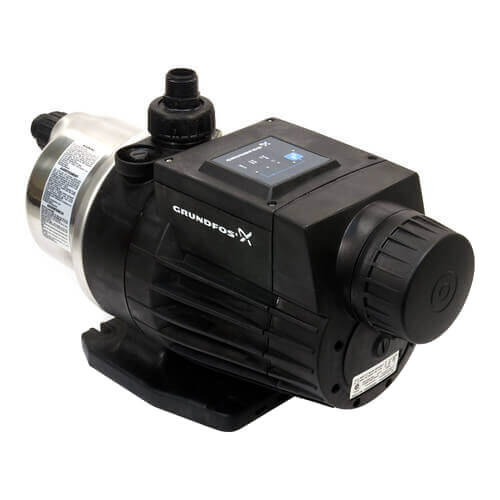

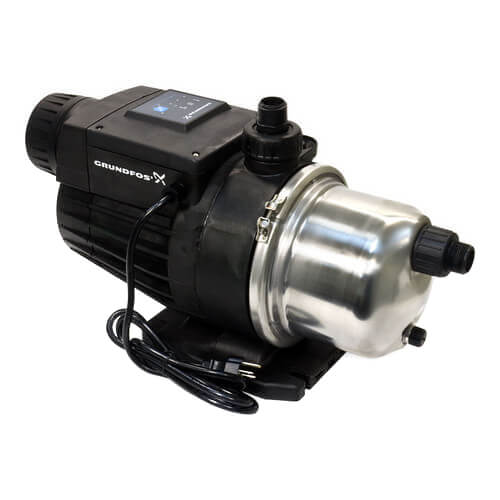

The Grundfos MQ is a compact, all-in-one, flow based, plug-and-play pressure boosting system, designed for domestic water supply applications such as homes, cabins, cottages, farms as well as
gardens. The pump is suitable for pumping of potable water and rain water. The MQ, with it's smart operation is both
easy to install and reliable.
The MQ is a complete, all-in-one unit, incorporating pump, motor, diaphragm tank, pressure and flow sensor, controller and check valve. Built in safeties ensure long life of the pump. These safeties include: dry running; excessive temperature; any overload conditions. The MQ is a self priming pump and needs no priming other than that at installation. The MQ is a plug-n-play system.
Features
The MQ is a complete, all-in-one unit, incorporating pump, motor, diaphragm tank, pressure and flow sensor, controller and check valve. Built in safeties ensure long life of the pump. These safeties include: dry running; excessive temperature; any overload conditions. The MQ is a self priming pump and needs no priming other than that at installation. The MQ is a plug-n-play system.
Features
- Complete system
- Low noise
- Built-in protective functions
- Automatic reset
- Compact, easy to install
- Requires no accessories
Specs
–
| Voltage: | 230V |
|---|---|
| Horse Power: | 3/4 |
| Inlet Size: | 1" MPT |
| Max Pressure (PSI): | 109 |
| Max Temp (F): | 95°F |
| Material: | POM + 25% Glass Fiber |
| Type: | Booster Pump |
