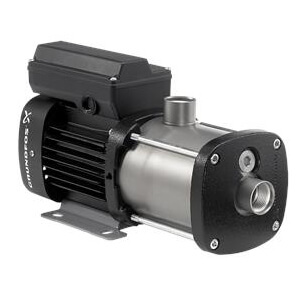

CM10-1 Cast Iron Multistage Centrifugal Pump, 1 PH, 1.5 HP, 115/230V, AQQE Shaft Seal
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/230V
1.5 HP
52.8 MAX GPM
145 MAX PSI
Cast Iron
194°F Max Temp
Description
–
Overview
Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
Application
Features and Benefits
Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
Application
- Washing and cleaning (washing machines)
- Water treatment
- Temperature control (heating/cooling)
- Chemical and pharmaceutical industries
- Building services
- Irrigation
Features and Benefits
- Compact design
- Modular construction/customised solutions
- Worldwide usage
- High reliability
- Service-friendly
- Wide performance range
- Low noise level
- High-performance hydraulics
- Electro-coated cast-iron parts
- High efficiency
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Type: | 1-Speed Pump |
| Material: | Cast Iron |
| Voltage: | 115/230V |
| Max Pressure (PSI): | 145 |
| Max Flow (GPM): | 52.8 |
| Max Head (Ft): | 64.64 |
| Horse Power: | 1.5 |
| Max Temp (F): | 194°F |
| Phase: | 1 |
| Min Temp (F): | -4°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
2 Replacement Parts
Seal Kit for CM10/15/25-AQQE/V
SKU: 96932445
GrundfosGasket and Seal Kit CM10/15/25-AQQE/V
SKU: 96932394
Grundfos
