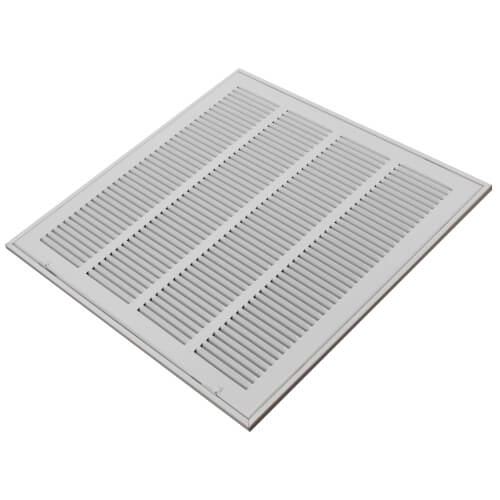

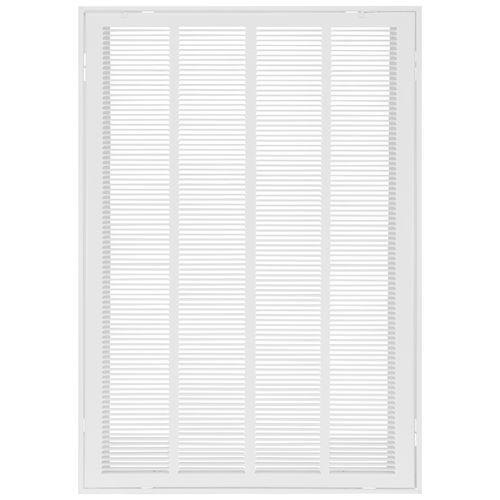

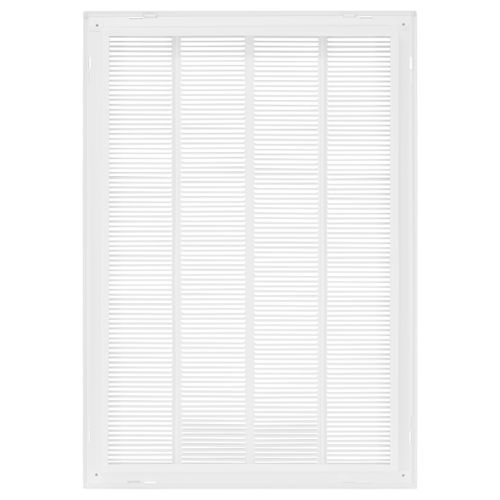

20" x 30" (Wall Opening Size) White Sidewall/Ceiling Return Air Filter Grille (659 Series)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$76.02 each
In Stock
Get 6 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
Steel
Description
–
Note: Size shown is approximate. Check the Submittal Drawing below for exact dimensions.
Features:
Features:
- All-steel construction
- 1/3" spaced fins set at 20 degrees
- Effectively conceals filter
- Use standard 1" thick disposable filters (not included)
- Removable face for easy installation and cleaning
- Equipped with adjustable filter retainers
- Bright White Finish
- Average face velocity = 390 fpm, based on filter capacity rating of 2 CFM per square inch of gross filter area. Free area averages 75% of grille core. For quick calculation free area (sq. in.) = listed width x lengthx .75
Specs
–
| Product Type: | Return Filter Grille |
|---|---|
| Wall Opening (Inches): | 20" x 30" |
| Height (Wall Opening): | 30" |
| Width (Wall Opening): | 20" |
| Color: | White |
| Overall Size: | 21-3/4" x 31-3/4" |
| Material: | Steel |
| Application: | HVAC |
| Series: | 659 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Product Type
Wall Opening (Inches)
Height (Wall Opening)
Width (Wall Opening)
Overall Size
CURRENT ITEM
Return Filter Grille
20" x 30"
30"
20"
21-3/4" x 31-3/4"
You May Also Need
Product Reviews
5 out of 10 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 10 reviews
Quality at best prices shipped quickly.
Best source for home projects.
TL
Charlotte NC
7 months ago
Verified Buyer
Was this review helpful to you?
Great deal
Quick shipping and better price than the local supplier.
Modern
MD
9 months ago
Verified Buyer
Was this review helpful to you?
I would buy this product again for sure, high quality.
The return air filter is perfect for my need it is exactly what I wanted. When I called and made the order the person who helped me was very kind and helpful. A pleasure to speak with and very helpful. She was a very nice lady.
Angaw
GA
1 years ago
Verified Buyer
Was this review helpful to you?
Well made product
Accurate description, well made.
79grenade
Peach Bottom, PA
1 years ago
Verified Buyer
Was this review helpful to you?
Great product.
Got this return filter vent it's very sturdy and fits my need.
Carolinaplumber2
Greenville NC
2 years ago
Verified Buyer
Was this review helpful to you?
Great product.
Arrived as described, and fit the prepared opening perfectly.
Bob
Norfolk, VA
2 years ago
Verified Buyer
Was this review helpful to you?
Good quality product
Exchanged shipping damaged vent easily no problem.
Ffej
Live Oak,Ca
4 years ago
Verified Buyer
Was this review helpful to you?
HI Quality, quick delivery
HI Quality, quick delivery. This was installed in the ceiling and it looks great, we tried another brand and the other brand could not even support its own weight.
John
Albany, NY
4 years ago
Verified Buyer
Was this review helpful to you?
I highly recommend this product and company
Item arrived without so much as a blemish. Best packaging I've ever seen!
Engineer in S.C.
Columbia, S.C.
5 years ago
Verified Buyer
Was this review helpful to you?
Great Aprilaire humidifier
I purchased the Aprilaire 500 whole house humidifier. Humidity is adjusted automatically based on the humidity in the house and the temperature outside. I was looking for a reliable product that does the work for me so I don't have to constantly adjust the setting manually. The weather is very dry in the winter where I live. This unit was the answer. Very easy to install. Installation instructions are easy to understand. product works great. Highly recommended.
Keith
Wisconsin
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: On all your return air filter grills is the listed size of the grile the air filter size
Asked by Hillbilly from the woods 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the listed size of the air filter grille is the size of the air filter.
Was this review helpful to you?
-
Yes, the listed size is the size of the filter. 1" thick.
Was this review helpful to you?
Q: When installing this 24x24 grille, should the fins be angled upward or downward. Does it make a difference? If it makes a difference, why up or down? Secondly, how does the 1" filter get replaced in this model? I don't see hinges or a way to open it other than removing the entire grille. Do you carry hinged wall return air filter grilles for either 1" or 4" deep filters? Thank you!
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the installation orientation does not make much of a difference beyond the appearance of the product. There are some small advantages to directing the air in the path of flow in the duct if velocities are high, but that usually isn't necessary. This model does include concealed hinges to change the filter.
Was this review helpful to you?
Q: Is this the outsdie demensions of the grill. I am trying to cover a 19 x 24 cutout in a door. I assume the width is 20 inches and the height is 25 inches and it does not use a filter. Any other suggestions would be appreiated! thanks Barry
Asked by Barry 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the following sizing diagram for full details on the dimensions of filter grilles with this style: http://s3.pexsupply.com/manuals/1305642783328/56257_PROD_FILE.pdf
