Product Highlights
–
2-1/2"
2-5/8"
Description
–

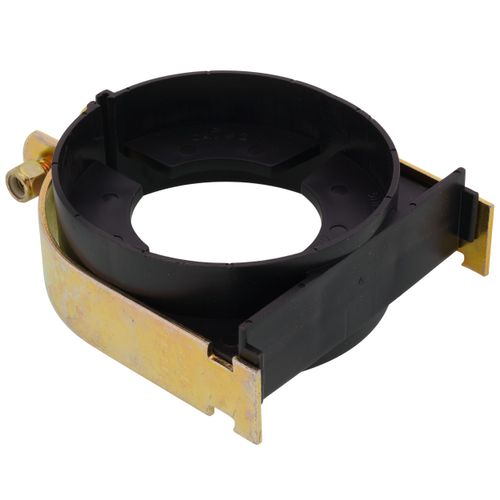

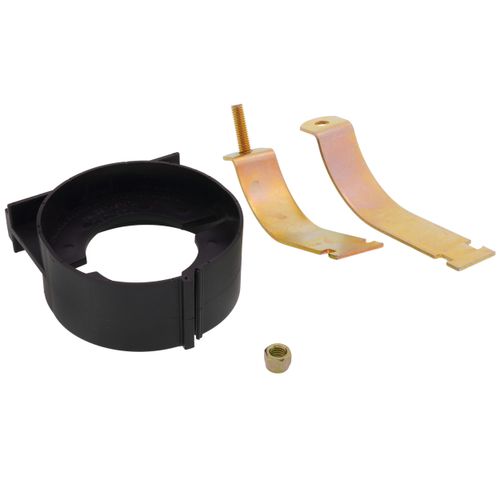

Fits 2-1/2" nominal pipe/tube (2-5/8" actual O.D.) insulated with 1" wall thickness. This steel strut-mount coupling is sized to the pipe's true outside diameter - not its nominal trade size - for a snug, gap-free fit over the insulation. Outside Diameter (O.D.) vs. Nominal Size: O.D. is the exact physical measurement across the pipe or tube's exterior - the sizing method used for HVAC, refrigeration (ACR), and copper tubing (e.g., 2-5/8" O.D. tubing measures exactly 2.625" across). Nominal size, by contrast, is a trade designation for iron, steel, or CTS copper pipe that approximates the inside diameter rather than the true outer edge - for standard CTS copper pipe, actual O.D. is always 1/8" larger than the nominal size (e.g., 2-1/2" Nominal = 2-5/8" O.D.).
HOLDRITE Steel Strut Mount
Mounts directly to strut
Meets the 25/50 flame spread/smoke developed index
Ideal for overhead insulated pipe on a trapeze
Applications Plenum support
Insulated pipe support
Horizontal
Applications
Specs
–
| OD: | 2-5/8" |
|---|---|
| Size: | 2-1/2" |
| Insulation Thickness: | 1" |
