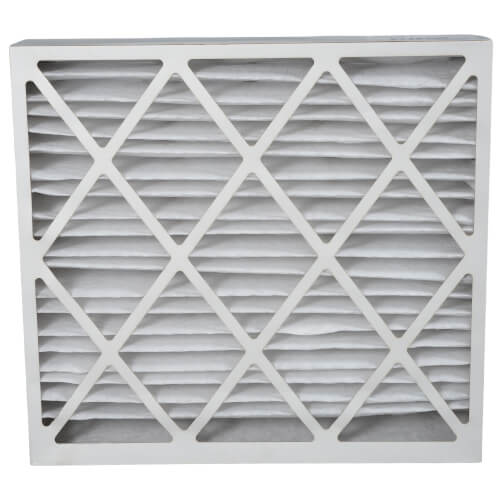

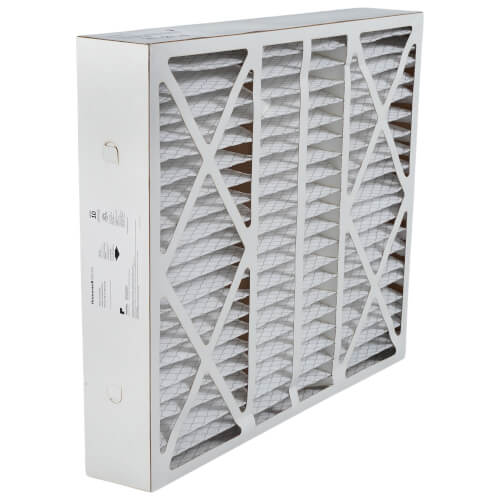

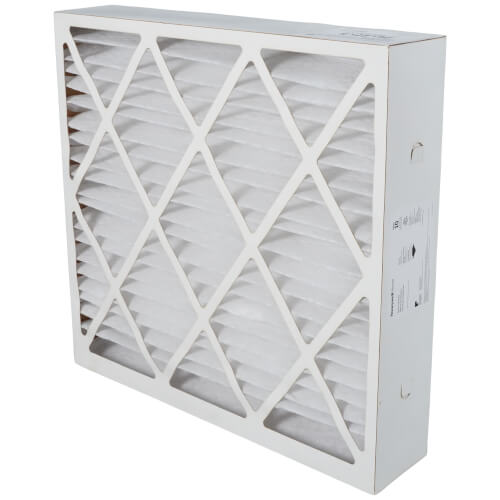

BAYFTFR24M 24" x 27" x 5" Air Filter (MERV 10)

The replacement filter is a high-efficiency, long-life filter for Perfect Fit media air cleaners. It captures a significant amount of the airborne particles in the air that circulate through the filter.

Features

• Higher efficiency and lower pressure drop than OEM filter.
• Captures particles as small as 0.3 micron.
• Pleated filter for greater media capacity.
• Low pressure drop reduces strain on equipment, provides a comfortable air flow, and helps maintain equipment efficiency.
• Easy installation. Angled edge fits neatly into offset side of air cleaner frame.

Specifications

• Application: Replacement Filter
• Dimensions (in.): 24 in. x 27 in. x 5 in.
• Dimensions (mm): 620 mm x 670 mm x 120 mm
• Used With: Trane Perfect Fit Media Air Cleaners
• Type of Air Cleaner: Media Air Cleaner
• Efficiency Standard: Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999.,Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large part
• Fractional Efficiency: E1=22%, E2=61%, E3=87%
• Minimum Efficiency Reporting Value (Media Filters Only): MERV 10
• Static Pressure Drop (in. w.c.): 0.17 at 500 FPM
• Approvals, Underwriters Laboratories Inc.: Filter Element: UL Listed, UL900, Class 2
