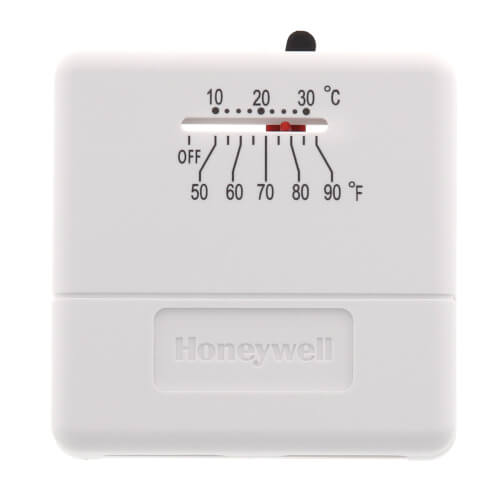

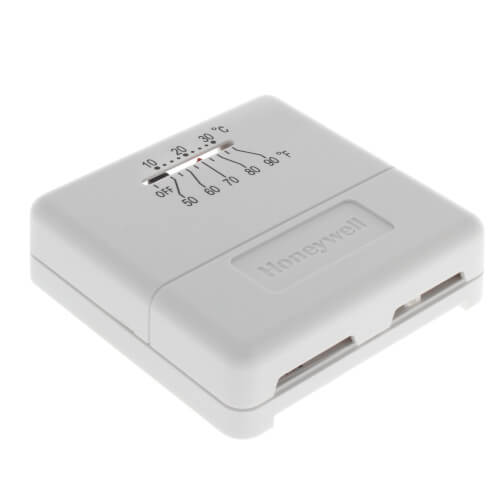

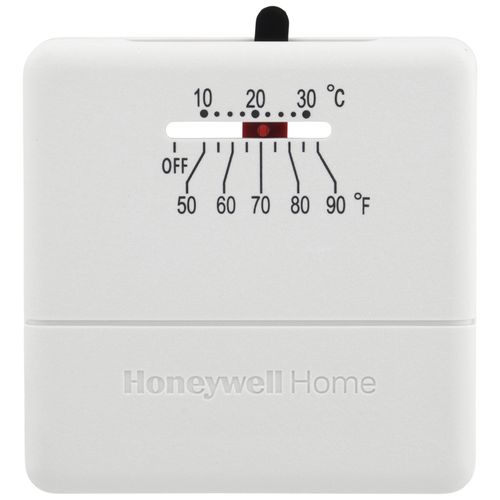

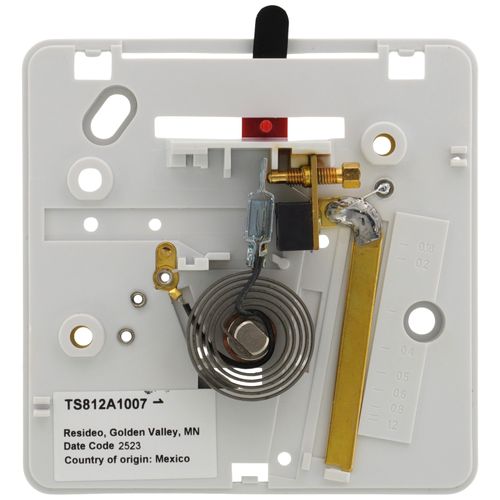

T812, Heat Only, Square Thermostat, w/ Pos Off Switch, TS812A1007
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$25.26 each
In Stock
Order by today, receive Friday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Non-Programmable
750mV, Low voltage
1 Heat
Square, Vertical
Hardwired
2.5 Amps
Description
–
Features

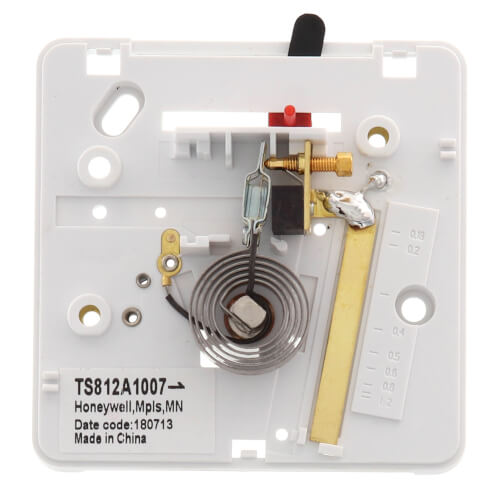

- Snap-acting bimetal switch uses no mercury and does not require leveling.
- Thermostat is streamlined and economical.
- Model available for 12 Vdc (T812B) and 750 mV (TS812).
- Includes dealer logo pocket.
Specs
–
| Amperage: | 2.5 |
|---|---|
| Application: | Heat Only |
| Stages: | 1 Heat |
| User Interface: | Mechanical |
| Programmability: | Non-Programmable |
| Mount: | Square Vertical |
| Type: | Oil Gas Millivolt Electric |
| Power Method: | Hardwired |
| Temperature Range (F): | 45°F - 95°F |
| Voltage: | 750mV Low voltage |
| Wattage: | 2.4 to 60 |
| Wiring: | W R |
| Color: | Premier White |
| Height: | 3-1/8" |
| Width: | 3-1/8" |
| Depth (Inches): | 7/8" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.5 out of 4 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
thermostat
great part, price and service
redmondduck
oregon
5 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Ok
Product was good. Part worked as expected. Delivery a little slow. 6 days.
Walt
Port Townsend, Wa
10 years ago
Verified Buyer
Was this review helpful to you?
Can live with it!!!!
I have ordered three of the TS812 750mV honeywell thermostats over the years. the first one was for the living room thermostat location which worked well. When deciding to move the thermostat to the den area I bought the second thermostat and used a toggle switch to switch between the two rooms should the den location not work out. The den area did and does work well, how ever, I noticed one day while in the cellar that the furnace was not coming on once and staying on -- usually took several trys until finally staying on. So I ordered the third one and when I opened it for mounting I noticed that the off break contact was twisted. so tried to straighten it to no avail -- so, just put in a jumper and forgot about the off position. Figured it was sort of a bonus thing anyway -- All works fine now. Guess I sort of don't expect the best of quality from things build overseas!!! So in summary -- I can live with it -- particularly where finding a thermostat for my heating system is very limited these days. Take care and thanks for the promp shiping service -- Philip J.
PJ
Waltham, MA.
14 years ago
Verified Buyer
Was this review helpful to you?
great picture of Item, good description
I used this product to replace a bad unit on my gas heater, Millivolt units are not easy to come by and I wanted the best so I bought Honeywell.
I picked it out myself so What is not good about it???.
Thanks ever so much.....Nice to have a warm house
