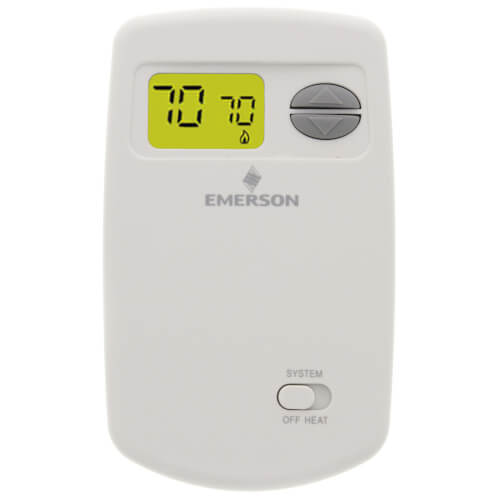

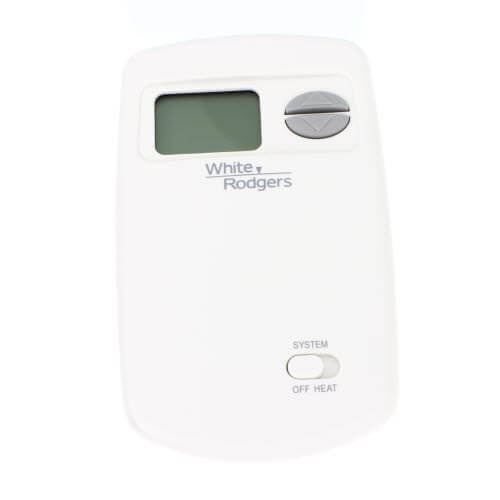

Non-Programmable Thermostat, 24 Volt or Millivolt system, Vertical
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Specs
| Amperage: | 15 |
|---|---|
| Application: | Heat Only |
| Stages: | 1 Heat |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Power Method: | Battery |
| Mount: | Vertical |
| Temperature Range (F): | 45°F - 90°F |
| Voltage: | Low voltage 24V |
| Wattage: | 1.5 to 45 |
| Wiring: | Rh W |
| Color: | White |
| Height: | 5-3/10" |
| Width: | 3-1/4" |
| Depth (Inches): | 1-1/10" |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Just what I ordered, to replace & update
Most Liked Negative Review
Excellent service
Too soon to review, but I think they fit the bill
Cheap, does what it should
Excellent service
Will buy again
I would buy this product again
Great product
Easy install, perfect function, fast delivery.
Perfect for a simple heat-only system
Basic thermostat,
yes
Product Q&A
11 QuestionsQ: Does the yellow screen with temperature reading stay on all the time, or does it go dark until you check or adjust it?
Asked by Tom 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe backlight will only come on when a button is pressed to adjust it.
Q: Hi, If W905 jumper is clipped is it supposed to shut off 1.5 degrees past the set point? i.e. if I have the set point set to 70 is it supposted to shut the heat off at 71.5 and then turn it back on at 68.5? Also if I clipt the jumper should I remove the batteries to reset it?
Asked by snorkel 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes, approximately 1.5 degrees as per the manual.
Q: I currently have an old analog wall thermostat installed to control the on/off switch for my gas logs. The analog thermostat was installed last year to replace a simple on/off switch that looked like a light switch that I used to use to turn my logs on/off. Can I use this digital thermostat to replace the analog thermostat?
Asked by Confused about gas fireplace thermostats 12 years ago
Add your answer
Yes. It works for on and off too.
Yes! The one illustrated is a good choice, if it does all that you want your thermostat to do. I actually use them in my home, and have replaced older analog thermostats, but not until they malfunction. My heating system is radiant, so programmable is not needed. So unless you want it to have your home warmed up, when you arrive from work or ? , it is a good choice. I still retain an old analog thermostat as a backup, in case I have a digital one that fails at some inopportune time. (I have about 8 of these in my home and shop, and have had one failure in the last 9 years) Regards
Q: hi i use this product but i change the battery now that one automatically change temp number before temp show maximum 32 now its show 80-87 how can we fix. plz help me to fix that product. thanxs
Asked by rajeev 12 years ago
Add your answer
Sounds like maybe you switched the readout from Celcius to Fahrenheit? Sent from my iPad
Here is a link to instructions for your thermostat: http://s3.supplyhouse.com/product_files/White%20Rodgers%20-%201E78-140%20-%20Install%20Instructions.pdf Under thermostat detail they are showing a jumper wire W904, make sure that these are not making contact. Before this jumper is clipped (cut) it will display in F once this jumper wire is clipped then it will display in C.
Q: Can I use this to replace a standard signal pole on-off wall switch that turns on my in wall gas fireplace unit?
Asked by Bill want heat control 12 years ago
Add your answer
yes, I am running Napoleon GDS28 gas stove with this thermostat.
I do not know what you fireplace unit recommends, you need to verify that recommendation. My Napoleon Fireplace works with a standard thermostat, and would work with the one you are asking about. Glen
Sorry, discard the first reply. No you can wire this to supply 120VAC power through the thermostat, but when wired in the thermostat spot inside the fireplace gas control circuit, it will run only when thermostat calls for heat as long as your power switch is on, and turn off when temperature was reached. Thermostat will trigger relay in the fireplace control circuit that will allow gas to be turned on and if you also have power blower it will turn on the blower when trigger temperature was reached.
Q: Is this t-staT ENERGY STAR RATED?
Asked by chris 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo, it is not energy star rated.
Q: is this for use with gas heat?
Asked by chris 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis thermostat will work with systems that require a low-voltage thermostat, regardless of the the type of fuel that powers the heat source.
Yes I use for a natural gas fireplace and it works very well with no problems.
In my case I just wanted a more accurate thermostat compared to the usual mechanical ones. My use was for a greenhouse application to close a window when the temperature dropped to a certain level.
I use it with gas heat via a radiant floor heating system and they work perfectly!
Yes it can be used for a standard 24 volt heating system. Or it will also work with a millivolt system in a gas fireplace. Connected by DROID on Verizon Wireless
Yes it will!
Q: HOW TO REPROGRAM THE SYSTEM ,AFTER CHANGING THE BATTERIES PLEASE
Asked by Jocelyne 14 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the manual linked below. http://s3.pexsupply.com/manuals/1249544570102/White_Rodgers_1E78-140_Instructions.pdf
Q: can you change the White rodgers 1E78-140 to degrees celcius. if so how
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffPlease view page 3 of this manual to learn how to change from Fahrenheit to Celsius: http://s3.pexsupply.com/manuals/1249544570102/White_Rodgers_1E78-140_Instructions.pdf
in the instructions in notes where and what "lead" to clip. Pretty straight forward.
Q: How is the cycle time achieved by this thermostat and how can it be reset to factory settings?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffPlease see page 2 of this document: http://s3.pexsupply.com/manuals/1249544570102/White_Rodgers_1E78-140_Instructions.pdf
