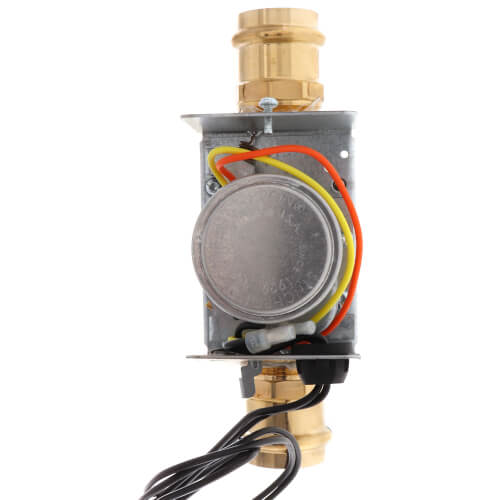

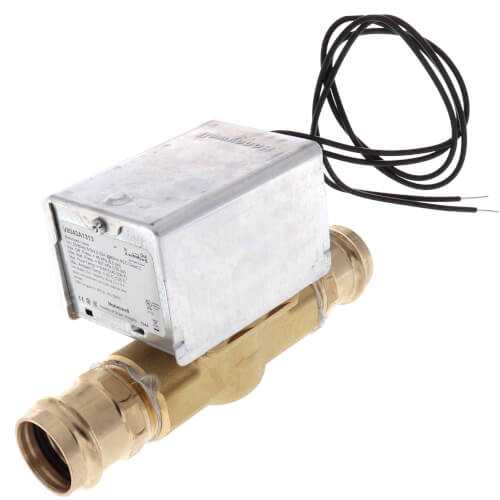

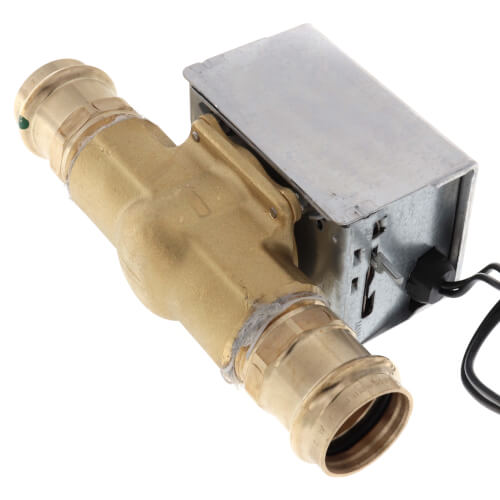

1" Viega Propress Connection Zone Valve (8.5 cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$201.00 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Straight-Through, 2-Way
ProPress Connection
8.5 Cv
1"
24V
Normally Closed
Description
–
These valves consist of an actuator motor and valve assembly for controlling the flow of hot and/or cold water. The V8043A provides two-position, straight-through control of supply water. The valves are designed for use with fan coil and other units requiring quiet, compact water valves.
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Body Pattern: | Straight-Through 2-Way |
| Connection Type: | ProPress |
| Flow Capacity (Cv): | 8.5 |
| Max Close-Off PSI: | 20 psi |
| Max Temp (F): | 200°F |
| Hertz: | 60 50 |
| Temperature Range (F): | 40°F - 200°F |
| Position: | Normally Closed |
| Min Temp (F): | 40°F |
| Voltage: | 24V |
| Max Ambient Temp (°F): | 125°F |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 120 psi |
| End Switch: | No |
| Wiring: | 18" Leads |
