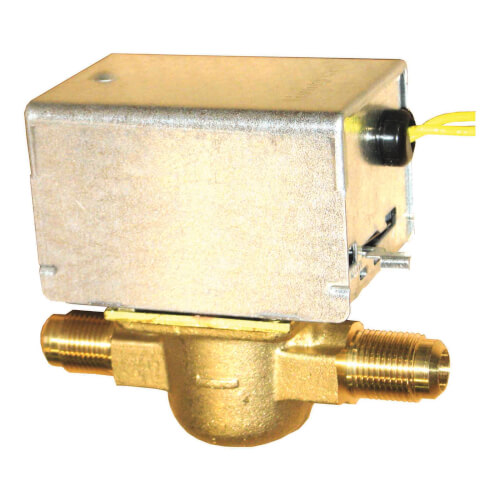

3/8" Flare Zone Valve (18" Leads, No End Switch)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Flare Connection
3.5 Cv
3/8"
24V
Normally Closed
Description
–
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
- Application: Hydronic Control
- Connection Type: Flare
- Pipe Size (inch): 3/8 in.
- Body Pattern: Two-way, Straight-through
- Capacity (Cv): 3.5 Cv
- Capacity (Kv): 3 Kv
- De-energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Fluid Temperature Range (F): 50 F to 200 F
- Electrical Connections (in.): 18 in. leads
- Power Consumption: 7.7 VA
- Nominal Timing (sec, min): 15 sec
- Valve Action : Spring return to close
- Maximum Ambient Temperature (F): 125 F
- Type: 2 position
- Static Pressure (psi): 125 psi
- Materials (Body): Brass
- Materials (Seat): Brass
- Materials (Stem): Stainless Steel
- Materials (Ball Plug): Buna-N (NBR) Rubber Ball
- Materials (Packing O-rings): EPDM rubber
- Voltage: 24 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Manual Opener: Yes
- Comments: Valve designed for cycling (not constantly powered on) applications.
- Comments: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 3/8" |
| Connection Type: | Flare |
| Flow Capacity (Cv): | 3.5 |
| Position: | Normally Closed |
| Voltage: | 24V |
| Body Pattern: | 2-Way Straight-Through |
| Valve Action: | Spring Return to Close |
| Wiring: | 18" Leads |
| Power Consumption: | 7.7 VA |
| Amperage: | 0.3 |
| Hertz: | 50 60 |
| Material: | Brass |
| Max Close-Off PSI: | 20 psi |
| Max Ambient Temp (°F): | 125°F |
| Temperature Range (F): | 50°F - 200°F |
| Nominal Timing: | 15 Seconds |
| End Switch: | No |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
2 Replacement Parts
2 Way Powerhead Conversion Kit (Water)
SKU: 40003918-006
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
1 Question1 Question
Q: does this valve have two red and two yellow wires?
Asked by [email protected] 12 years ago
Add your answer
Verified Reply- AnonymousYes, the actuator has both red and yellow wires.
