2 Way Powerhead Conversion Kit (Water)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Specifications
- Adaptor kit for V4043, V8043, 2-way hydronic valves
- Application: Replacement Part for V Series Zone Valves

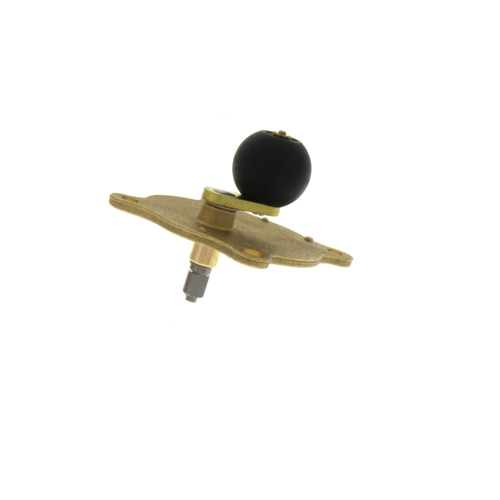

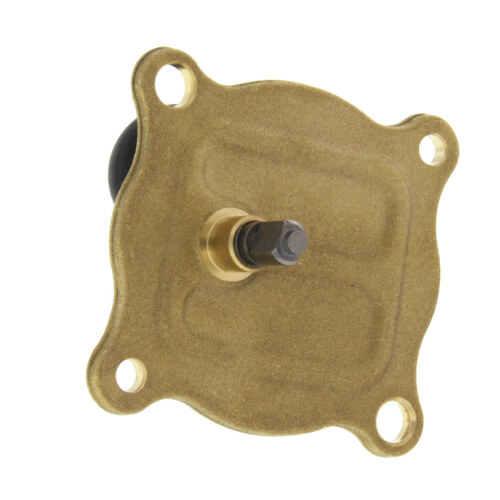

- Includes: Adapter plate, ball and shaft assembly, large O-ring and four mounting screws.
- Converts pre-1986 zone valves to be compatible with current power heads
Specs
| Application: | Replacement Part |
|---|---|
| Used With: | V8043 Series V4043 Series |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
It works!
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
nut an bolts go together
I will buy again
I would buy again.
Bot to cover my rear. Returned due to not needing.
Valve adapter to allow newer valve head to work old valve
Hot Water furnace parts
excellent company to deal with
Perfect fit
You always have what I'm looking for
Easy to install, perfect fit
Old valve stuck open, this one doesn't.
Product Q&A
3 QuestionsQ: When using this conversion kit to repair an old valve, can the old motor, etc. be re-used or do other parts of the valve have to be upgraded too?
Asked by Ray 14 years ago
Add your answer
You can use original parts if they are serviceable, that's what I did.
I re-used the motor, the ball was worn out on the valve.If the motor works then re- use it.
The existing power head assembly can be reused.
Ray; In my case I was able to use the parts just fine as they were directly interchangeable. Hope that helps. Mario M.
Absolutly! I have changed out several of these, which were installed back in 1975. I cannot vouch for anything older than 35 years, but if it fits the on the plumbing, the top (zone valve, etc) should fit also.
Ray: The old motor can be used if it is in working order. I found out later that the recirculating pumps in my building were the problem generating noise & not the motor on the valve. Also had a hydraulic hammering that came from other units in the building & not my unit. Test the motor by cycling the thermostat up & down & watch & listen to how it sounds & watch how it works. The motor is a clock type & very quite. Hope this helps. Mike
Ray, yes the old motor can be reused.
Yes this is the body (without the motor, and switch), but includes the black valve, and the top of the valve, which is the mounting point for the motor and switch. In my case the valve was binding and the motor was unable to move it, took the old zone valve apart, took the new zone valve apart and took the guts out of the new body, put them in the old body and put the motor and switch back on, 20 minute fix, didn't have to solder anything. Good luck! Chris
I change these out all the time. Make sure the base groove for the o-ring is clean and you use a new o-ring. The valve/motor is intended to be rebuilt. dave lanning
Hi- I used a new motor but retained the old valve body the kit adapted the new motor to the old style valve body. However I had to file off a small alignment tab to get the new mount to seat/ seal on my old valve body. Otherwise an easy install - much easier than fully draining down the system to solder in a new valve. Sent from iPhone.
Q: 1) What is the difference between the ball in closed loop vs. open loop applications? I notice some zone valves specify use only in closed loop systems. We have an open loop system and find that the balls crack and develop an uneven surface after 5 years or so, and allow flow even when closed. 2) Is this part an acceptable one for an open loop system? I want to buy several as replacements. 3) Is there a shelf life on these? Thanks.
Asked by Roger K 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the problems are created by oxygenated water. Honeywell does not want any added water in the system when it is placed in operation. They know from experience that the balls can and will absorb oxygen and it will harden and destroy the ball. In water conditions this is typical of an open system. All valves in the V8043 line are not for an open loop. In fact, none of their residential valves are designed for open loops. There is no issue with the shelf life of these. Problems arise when water is added to the ball and it is allowed to be in the water for long periods of time.
Open loop systems have lots of oxygen dissolved in the water and this attacks the material that the ball is made of and causes the breakdown you have experienced. They are not recommended for open loop systems. I am not familiar with the shelf life.
Q: I have three V8043F 1036 valves. Will this fix the leaking stems coming back to the motor?
Asked by Brian 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it should.
