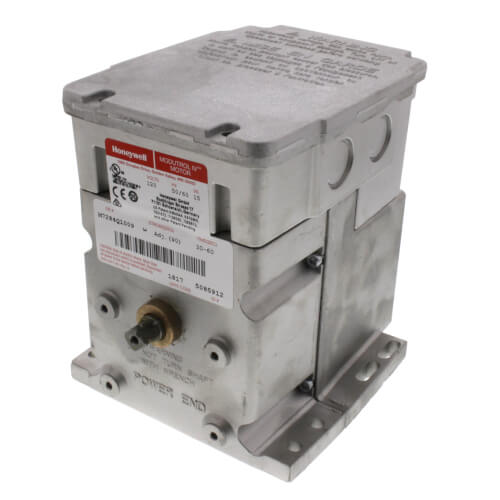

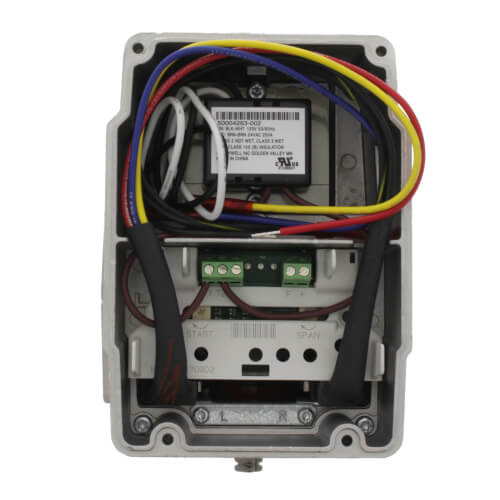

120V Non-Spring Return Foot Mounted Actuator w/ 2 Internal Aux. switches, 150 lb-in.
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,487.02 each
In Stock
Get 10 Thu, Jun 11
Order by today, receive Thursday
MANUALS (1)
This item replaces: M7284Q1106
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
150 lb-in Torque
Foot
Description
–
The Series 72 Modutrol IV Motors spring return and non-spring return motors are used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.
Features
Specifications
Features
- Integral spring return returns motor to normal position when power is interrupted.
- Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
- Motor and circuitry operate from 24 Vac.
- Quick-connect terminals are standard--screw terminal adapter is available.
- Adapter bracket for matching shaft height of older motors is available.
- Motors have field adjustable stroke (90 to 160 degrees).
- Integral auxiliary switches are available factory mounted, or can be field added.
- Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications.
- All models have dual shafts (slotted and tapped on both ends).
- All models have auxiliary switch cams.
- Fixed torque throughout the entire voltage range.
- Motors are designed for either normally open or normally closed valves and dampers.
- Models available with adjustable start (zero) and span.
- Models available with 4 to 20 mA input signal.
- Models available with 2 to 10 Vdc input signal.
- Die-cast aluminum housing.
Specifications
- Application Type: Electric
- Fail Safe Mode: Non-Spring Return
- Control Signal: Modulating, 4-20 mA
- Motor Shaft: Dual ended Shaft
- Stroke: Adjustable; 90 to 160 degrees, Symmetrical
- External Auxiliary Switches Available: Yes
- Frequency: 50 Hz, 60 Hz
- Power Consumption Driving (VA): 15 VA
- Shaft Dimensions (in.): .375 in
- Shaft Shape: Square
- Mounting: foot-mounted
- Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
- Temperature Range: -40 to 150F
- Deadweight Load on Shaft (Either End) (lb): 200 lbs
- Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs
- Auxiliary Switch Ratings AFL - 120 Vac: 7.2A
- Auxiliary Switch Ratings AFL - 240 Vac: 3.6A
- Auxiliary Switch Ratings ALR- 120 Vac: 43.2A
- Auxiliary Switch Ratings ALR- 240 Vac: 21.6A
Specs
–
| Voltage: | 120v |
|---|---|
| Fail Safe Mode: | Non-Spring Return |
| Control Signal: | 4 to 20 mA Proportional |
| Torque: | 150 lb-in |
| Internal Aux Switch: | 2 |
| Timing: | 30-60 Seconds |
| Temperature Range: | -40° to 150°F |
| Mount: | Foot |
| Feedback: | No |
| Features: | 2 Motor Shafts |
| Wiring: | Screw Terminals |
