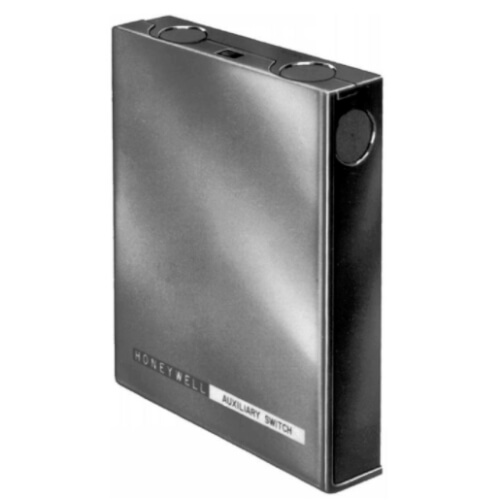

Single SPDT Auxuiliary Switch for all Modutrol Motors

For control of auxiliary equipment as a function of motor shaft position.

Features

• Compatible with Modutrol III and Modutrol IV motors. (Requires 220738A adapter bracket for use with Modutrol IV motors).
• Micro Switch precision switches, adjustable.
• Indicate motor position by use of a scale plate anchored to a common shaft, which allows Q607 to be adjusted for operational sequence before mounting.
• Adjustable plate allows universal mounting on either end of motor.
• Wrap-around cover for easy access to switch adjustments and wiring.
• Maintenance-free protection of the switches and cams.

Specifications

• Application: Electro-mechanical
• Internal Auxiliary Switch: 2
• Control Signal: SPDT, On/Off switch
• Electrical Connections: Screw terminals
• Mounting: Cover or gear end
• Auxiliary Switch Ratings AFL - 120 Vac: 9.8A
• Auxiliary Switch Ratings AFL - 240 Vac: 4.90A
• Auxiliary Switch Ratings ALR- 120 Vac: 58.8A
• Auxiliary Switch Ratings ALR- 240 Vac: 29.4A
• Includes: Revised mounting bracket
• Comments: Post 1969 Honeywell Modutrol Motors
• Approvals: Approvals, Underwriters Laboratories Inc
