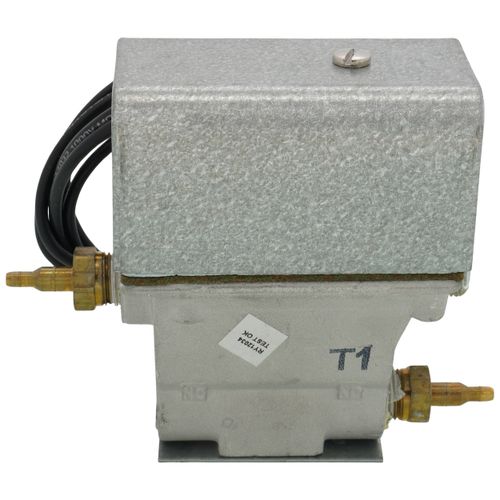

440 to 480 Vac Surface Mounted Electric Pneumatic Relay
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$487.29 each
In Stock
Order by today, receive Tuesday
This item replaces: RP418A1065
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Surface
440 to 480 VAC
Description
–
Electrically operated pneumatic switches used to interlock an electrical system and a pneumatic control system. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.
Features
Specifications
Features
- Usable as a diverting relay, a selector relay, or a stop and bleed relay.
- Mount and operate in any position.
- Available with lead wires or junction box.
- Line or low voltage models available.
Specifications
- Type: Electric / Pneumatic Relay
- Operation: Energized: ports 1 and 3 connected, port 2 blocked
- Operation: De-energized: ports 2 and 3 connected, port 1 blocked
- Airflow Usage: 0.42 scfm (200 mL/s) at 20 psi (138 kPa) supply with 1 psi (7 kPa) pressure drop
- Capacity: 0.075 Cv minimum
- Air Connections: Barbed fitting for 1/4 in. O.D. plastic tubing
- Electrical Connections: Junction Box and 15 in. (380 mm) leads
- Frequency: 50 Hz
- Mounting: Surface
- Operating Humidity Range: 5 to 95% RH
- Dimensions: 2 7/8 in. high x 3 13/16 in. wide x 1 1/4 in. deep
- Temperature Range: 0 F to 100 F
- Includes: Junction Box
Specs
–
| Mount: | Surface |
|---|---|
| Voltage: | 440 to 480 VAC |
