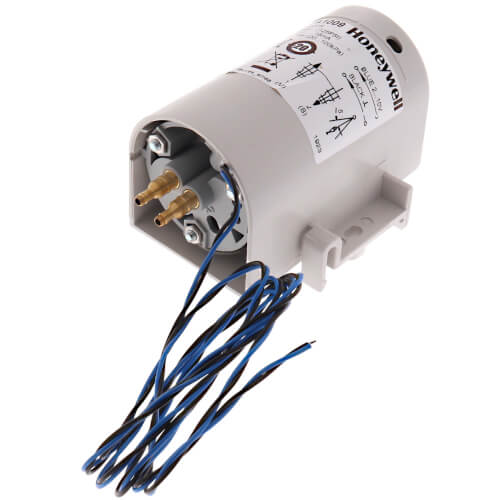

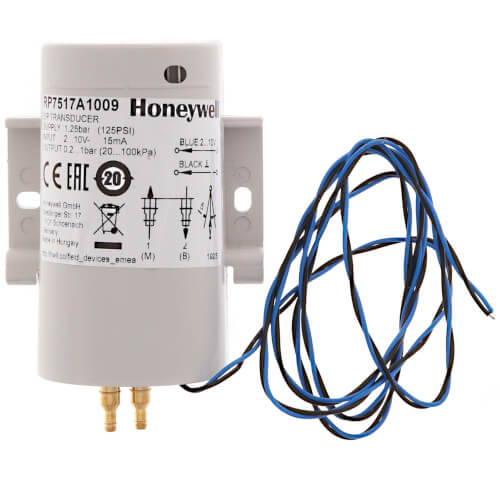

Electronic Pneumatic Transducer w/ direct action and 2 to 10 vdc input signal (w/ cover)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,626.60 each
In Stock
Get 1 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Screw, Snap Rail
Description
–
Electronic-Pneumatic Transducers are used in electronic-pneumatic control systems to convert a proportional electric output signal from a controller into a direct-acting, proportional pneumatic signal.
Features
Specifications
Features
- Screw mounting or snap rail (models with cover).
- Factory calibrated.
- Dual barb fittings.
- High accuracy.
Specifications
- Application: Electric to pneumatic Transducer
- Maximum Safe Operating Pressure (psi): 30 psi
- Output Pressure Range: 3 to 15 psi
- Connections: Dual barb-fittings for 1/4 in. or 5/32 in. O.D. plastic tubing
- Airflow Usage: 0.025 scfm (117mL/s)
- Max. Operating Temperature: 131 F
- Input Signal: 2 to 10 Vdc
- Normal High End Pressure: 16 psi with 18 psi main pressure at 12 Vdc
- Normal Low End Pressure: 0.5 psi at 0 Vdc
- Pressure Range: 0 to 18 psi
- Voltage: Powered by Control signal
- Humidity Range: 5 to 95% RH
Specs
–
| Mount: | Screw Snap Rail |
|---|
