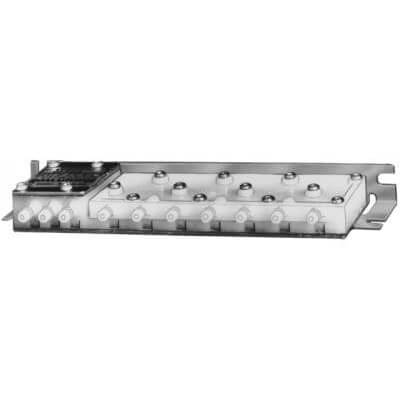

Wall, In-Line or Panel Mounted Load Analyzer Relay, 7 input

A diaphragm logic pressure selector selects the highest and/or lowest branch pressure input from zone thermostats to operate final control elements in pneumatic control applications. Replacement devices are available for Johnson, Powers, Robertshaw, and Barber-Colman devices.

Features

• Seven input manifold containing logic diaphragm, air filter, and restrictions.
• Ten sharp barb connectors for all piping requirements.
• Large integral filter assures clean air to the manifold.
• Requires no field adjustment, and plastic construction results in minimum maintenance.
• Two analyzers can be connected together to increase inputs to twelve.

Specifications

• Type: Load Analyzer Relay, 7 input
• Operation: Selects highest and/or lowest branch pressure input to operate final control elements
• Airflow Usage: 0.04 scfm (0.019 mL/s)
• Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
• Air Connections: Barb fittings (10) for 1/4 in. (6 mm) O.D. plastic tubing
• Mounting: Wall or In-line or panel
• Maximum Safe Operating Pressure (psi): 25 psi
• Operating Humidity Range (% RH): 5 to 95% RH
• Temperature Range: 0 F to 140 F
