Description
The S437 Sail Switches respond to the air velocity in heating or warm air ducts, such as used in farm crop dryers. The switch completes a 24V or line voltage burner control circuit only when the blower or fan has produced a predetermined air velocity.

Features

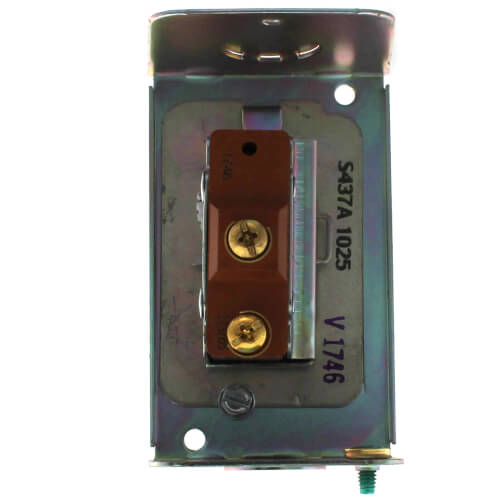

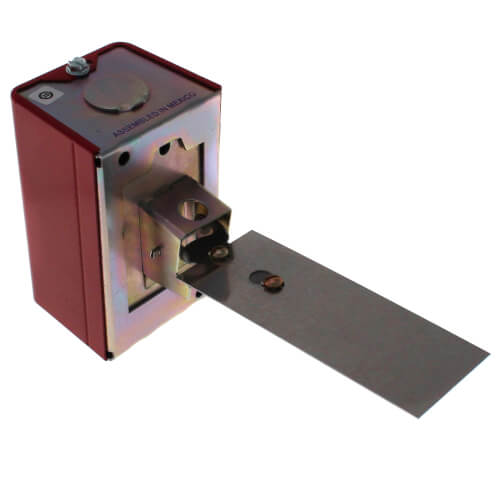

  • Micro Switch SPST snap switch is operated by metal sail inserted in an air stream.
  • Sail can trimmed to one-half the original size to double the velocity required to close the snap switch contacts.
  • Switch differential can be manually adjusted by turning a knurled knob on the snap switch.
  • A conduit knockout is located on each end of the case for wiring convenience.
Hide Description
Manuals (1)
Specs
Max Temp (F):

150°F

Switch:

SPST

Insertion Length:

4-1/2"

Contact Ratings:

8.0 A @ 120 Vac

5.1 A @ 240 Vac

2.0 A @ 24 Vac

15.0 A @ 6 Vdc

7.5 A @ 12 Vdc

×
