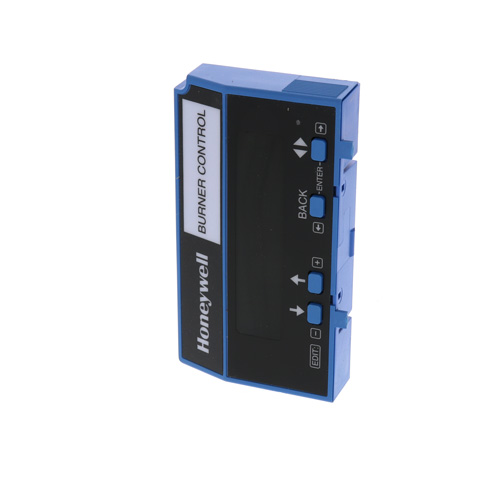

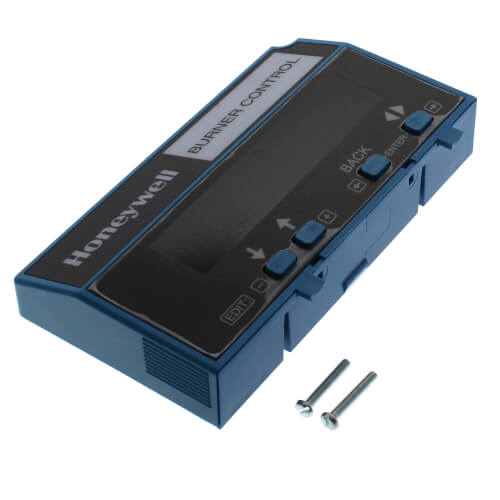

Series 5 Keyboard Display Module - English with Valve Proving

The KDM provides local or remote annunciation of operation and fault information, remote reset, report generation, burner control data and diagnostic information. The KDM is part of the 7800 SERIES of microprocessor-based burner controls for gas, oil, coal or combination fuel single burner applications. The 7800 SERIES is programmed to provide a level of safety, functional capabilities and features beyond the capacity of conventional controls.

The S7800A1001 KDM Series 5 offers the following technical advancements to the 7800 SERIES devices:

• Compatible with installed Honeywell 7800 SERIES systems.
• A three screen two-row by twenty-column readout set of
• Call Service (Business Card) alpha/numeric directions can be displayed instead of the standard lockout display message. (Pass Code protected feature). This business card can be cloned to other displays to save setup time. ï Enable ModBus Communication feature.

The S7800A1001 can either do the Expanded Annunciator Feature or ModBus -- not both. If BOTH are required, order the S7810M1003 ModBus Module for the ModBus option.
