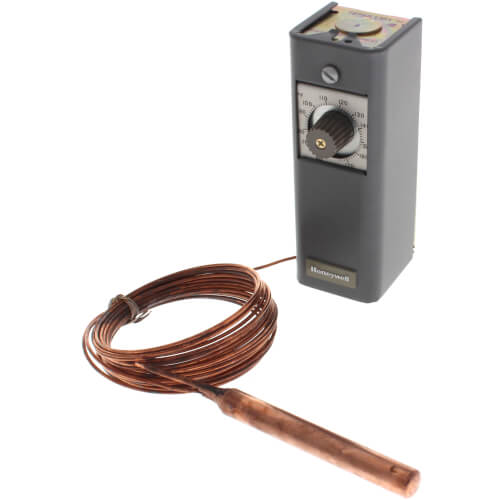

Remote bulb Commercial Temperature Controller (55 to 175 F, 20 ft. capillary)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$488.23 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
277v, 120v, 240v
175°F Max Temp
55°F Min Temp
3.6° to 12°F (Interstage Dif.), 3.6°F
5-5/8"
2-5/8" Depth
Description
–
Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.
Features
Specifications
Features
- Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
- Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems.
- Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
- Controller can be mounted in any position. Ambient temperature compensation provides good temperature control.
- Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
- T678 models have a maximum connected load of 2000 VA.
Specifications
- Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
- Output Type: Relay
- Type: Remote Bulb
- Output: 2 SPDT switch contacts
- Voltage: 120 Vac or 240/277 Vac
- Frequency: 50, 60 Hz
- Dimensions: 5-5/8 in. high x 2 in. wide x 2-5/8 in. deep
- Sensor Element: Copper Bulb
- Number of Sensor Inputs: 1
Specs
–
| Capillary Length: | 20' |
|---|---|
| Application: | Commercial Remote Bulb Temperature |
| Output: | Relay 2 SPDT |
| Voltage: | 277v 120v 240v |
| Hertz: | 50 60 |
| Contact Ratings 120v: | 8.0 AFL 48.0 ALR |
| Contact Ratings 240v: | 30.6 ALR 5.1 AFL |
| Contact Ratings 277v: | 25.2 ALR 4.2 AFL |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-5/8" |
| Sensor Type: | Copper Bulb |
| Sensor Inputs: | 1 |
| Bulb Size: | 1/2" x 3-9/16" |
| Max Temp (F): | 175°F |
| Min Temp (F): | 55°F |
| Temperature Range (F): | 55°F to 175°F |
| Max Operating Temp: | 200°F |
| Differential: | 3.6° to 12°F (Interstage Dif.) 3.6°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Capillary Length
Application
Voltage
Contact Ratings 120v
Contact Ratings 240v
CURRENT ITEM
20'
Commercial
Remote Bulb Temperature
Remote Bulb Temperature
277v
120v
240v
120v
240v
8.0 AFL
48.0 ALR
48.0 ALR
30.6 ALR
5.1 AFL
5.1 AFL
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hard to wire but functional
Although this part worked as expected, and now I can again control water temperature output, I found it difficult to feed the wires into the body. Specifically, it was very frustrating trying to get a lock nut on the MC connector on both top and bottom knockouts. Once that battle was over, I didn't feel comfortable with the limited space to route wire to the terminals.The whole experience left me wondering why this part couldn't be an inch taller, and inch wider, and 1/2" deeper.
Steve
SF Bay Area
7 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Great product at a resonable price
ED
Ga
12 years ago
Verified Buyer
Was this review helpful to you?
