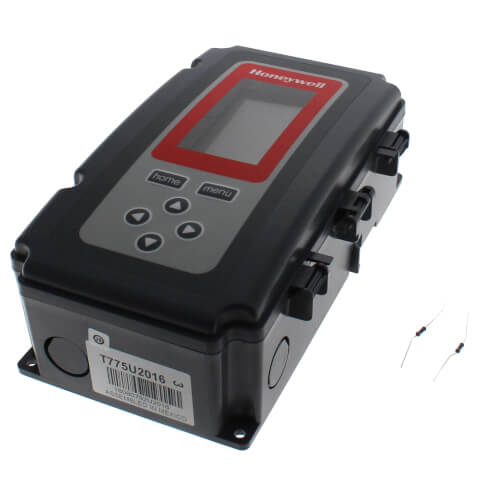

Main product image of Electronic Universal Controller w/ 1 Universal Input, 1 Temp Input, 2 SPDT Relays, 2 Analog Outputs
Magnifying glass
Hover image to zoom

Electronic Universal Controller w/ 1 Universal Input, 1 Temp Input, 2 SPDT Relays, 2 Analog Outputs

Brand:
Honeywell
SKU:
T775U2016
Rating:
(1)
Q&A:
(0)
Electronic Universal Controller w/ 1 Universal Input, 1 Temp Input, 2 SPDT Relays, 2 Analog Outputs
Magnifying glass
Hover image to zoom
$515.61 each
In Stock
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday

MANUALS (2)

Install Instructions
Specification Sheet
Install Instructions
Specification Sheet
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
240v, 120v, 24V
Product Highlight: Max Temp (F)
248°F Max Temp
Product Highlight: Min Temp (F)
-40°F Min Temp
Product Highlight: Height (Inches)
8.15625" Height
Product Highlight: Width (Inches)
4-13/32" Width
Product Highlight: Depth (Inches)
2-15/16" Depth

Description

–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature, humidity, pressure, etc., and providing switched and/or proportional outputs to various types of loads.

Features:
  • Universal model (T775U) can control pressure, humidity, or any variable analog input.
  • Special boiler model (T775P) for boiler control.
  • Special Staged Sequencing Model (T775L) for sequence staging of relays with one or two setpoints.
  • Special Expansion Model (T775S) for staging up to 12 relays with two setpoints (each T775S provides 4 relays).
  • Save time on installations with the easy-to-use graphical Interface, large display, &the intuitive programming.
  • Use the time clock scheduler or digital input to control the setback and disable output options to help save energy.
  • Provide very fast or very fast response times on modulating outputs by adjusting the integral and derivative times (PI or PID).
  • Configure models with reset in a few easy steps.
  • Eliminate the need for a separate time delay device & protect equipment with the minimum off time option.
  • Use the T775L & T775P to stage up to 12 relays (with optional T775S) from two independent heat or cool setpoints.
  • Support for digital output alarm on the T775P configurable based on minimum, maximum, or differential temperature.

    Specifications:
  • Universal-Control to sensor A (universal input) and Sensor B (temp) independently
  • On/off or analog controller for applications where electronic accuracy and remote sensing of temperature, humidity or pressure are required.
  • Type: Universal - Humidity, Pressure, etc.-NEMA 1
  • Analog Output: 2
  • Relay Outputs: 2 SPDT
  • Relay Contact Ratings (24 Vac): 10.0A resistive
  • Relay Contact Ratings (120 Vac): 1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
  • Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
  • Sensors Included: None
  • Maximum distance to sensor (ft): Up to 1,000 ft
  • Accuracy (F): ±1 F at 77 F
  • Differential Temperature (F): 1 F to 150 F
  • Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
  • Operating Ambient Temperature Range (F) -40 F to 125 F @ 50 Hz
  • Analog Output Type: Electronic Series 90, 4-20 mA, 0-10 Vdc, & 2-10 Vdc

    • Specs

    –
    Application:

    Electronic Remote Temperature

    Humidity

    Pressure

    Output:

    2 SPDT

    (2) Analog

    Sensor Inputs:

    2

    Voltage:

    240v

    120v

    24V

    Hertz:

    50

    60

    Contact Ratings 24v:

    10.0 A Resistive

    Contact Ratings 120v:

    58.8 ALR

    1/2 hp

    125 VA Pilot Duty

    9.8 AFL

    Contact Ratings 240v:

    125 VA Pilot Duty

    4.9 AFL

    29.4 ALR

    1/2 hp

    Height (Inches):

    8.15625"

    Width (Inches):

    4-13/32"

    Depth (Inches):

    2-15/16"

    Sensor Type:

    1097 ohm @ 77 F PTC

    None

    Max Dist To Sensor:

    Up to 1000 ft

    Max Temp (F):

    248°F

    Temperature Range (F):

    -40°F to 248°F

    Min Temp (F):

    -40°F

    Accuracy:

    +/-1° at 77°F

    Throttling Range:

    1°F to 150°F

    Ambient Operating Temperature:

    -40°F to 125°F @ 50 Hz

    -40°F to 140°F @ 60 Hz
