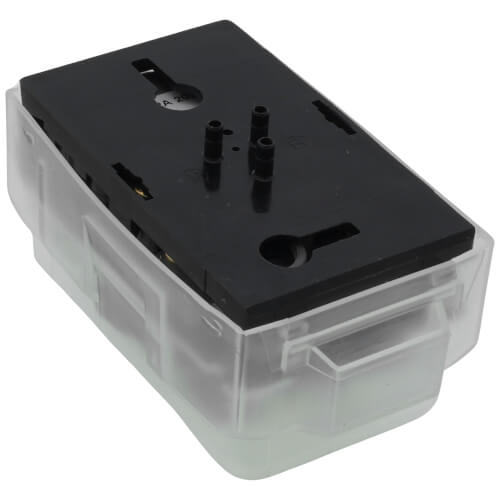

Pneumatic Thermostat Direct Acting Heating Reverse Acting Cooling, TP972A2036

Two-pipe, one- or two-temperature, pneumatic thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. Replacement kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.

Features & Specifications:

Durable TP970 Series Thermostat. Pilot operated for high capacity.

Two-temperature energy conservation model available.

Adapter plate in Convertastat kits covers existing thermostat wall mark.

Backplate has molded air connections-no separate fittings needed.

Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options with Tradeline model-other covers available.

Remote Bulb: No

Action: Direct Acting Heating, Reverse Acting Cooling

Number of Pipes: 2

Setpoint Temperature Range (F): Heating 50°F to 75°F, Cooling 60°F to °F

Changeover Pressure (PSI): Heat 18 PSI, Cool 13 PSI

Airflow Usage: 0.011 scfm (5.2 mL/s)

Dimensions (in.): 3-1/4" high x 2" wide x 1-5/8" deep

Comments: Two concealed setpoint knobs

Includes: Energy Conservation Model, Order Cover Separately
