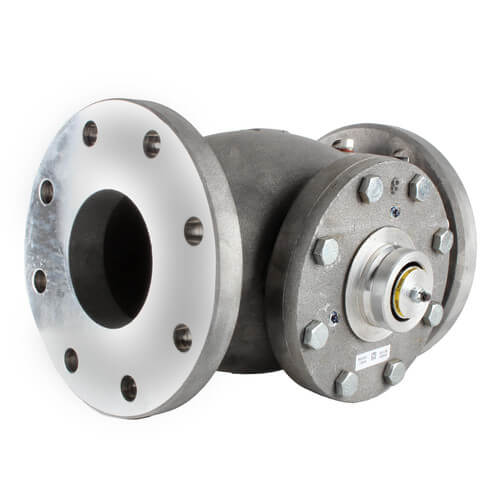

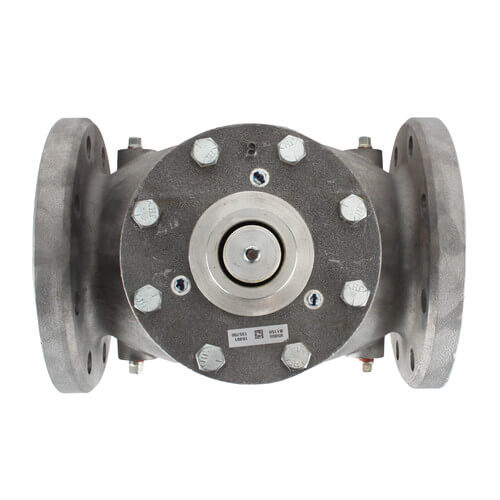

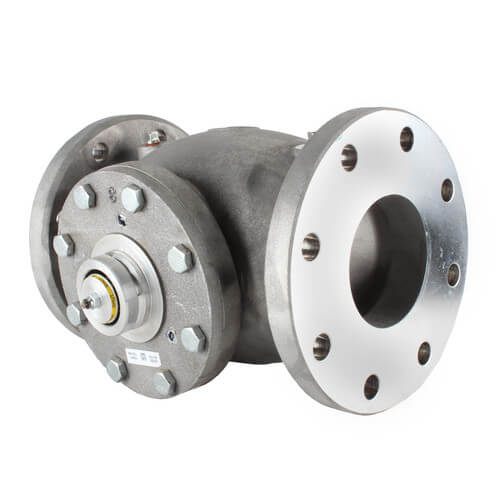

4" Flanged Industrial Gas Valve w/ Characterized Guide
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
V5055B1150 has been discontinued
Discontinued January 18, 2019
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
4" Flanged Industrial Gas Valve with On-off safety shut-off
Product Highlights
–
Propane, Natural Gas
120v
V9055 Series, V4055 Series, V4062 Series
4"
-40°F Min Temp
150°F Max Temp
Description
–
Overview:
Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.
Features:
Use with natural or LP gases.
Mount directly in gas supply line.
Include 1/4 in. NPT upstream and downstream taps and plug.
4" models have only flanged connections.
V5055 normally closed valves are rated for final shutoff service safety shutoff.
V5055A,C,D,E Valves are for On-Off service.
V5055B Valve has a characterized guide and in combination with the V4055, V4062, and V9055 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively.
V5055C,E,F Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
V5055D,E,F Valves are for high pressure applications.
Includes: 1/4" - 18 NPT downstream tap and plug, 1/4" -18 NPT upstream tap and plug
Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.
Features:
Includes: 1/4" - 18 NPT downstream tap and plug, 1/4" -18 NPT upstream tap and plug
Specs
–
| Capacity (CFH): | 9180 |
|---|---|
| Voltage: | 120v |
| Frequency: | 60 Hz |
| Operating Temp Range: | -40°F to 150°F |
| Temperature Rating: | -40°F to 125°F |
| Electric Connection: | 1/4" Spade Terminal |
| Used With: | V9055 Series V4055 Series V4062 Series |
| Size: | 4" |
| Min Temp (F): | -40°F |
| Max Temp (F): | 150°F |
| Fuel Type: | Propane Natural Gas |
